EATON Molded Case Circuit Breaker, Type FDB, Series: C Series, 600 V AC/250 V DC, 80 A, 50/60 Hz, 18 kAIC at 240 VAC/14 kAIC at 480 VAC Interrupt, F Frame, Thermal Magnetic Trip, 3 Pole, Line/Load, 40 deg C, 3.38 x 4.13 x 6 in

• Patented contact design features high speed "blow-open" action, resulting in superior performance
• Suitable for reverse feed applications
• 18 kA at 240 VAC, 14 kA at 480 VAC interrupt rating

EATON Handle Mechanism, NEMA 4/4X, Rotary Handle, Through-The-Door Handle Mounting Position, For Use With: C Series F-Frame Molded Case Circuit Breaker, 16 in Shaft Length, Metal, 19 x 9-1/4 x 4-1/2 in

• All rotary handle mechanisms include a handle "lock off" to prevent turning the breaker on while in the Off position and indicate on/Off/tripped/reset positions

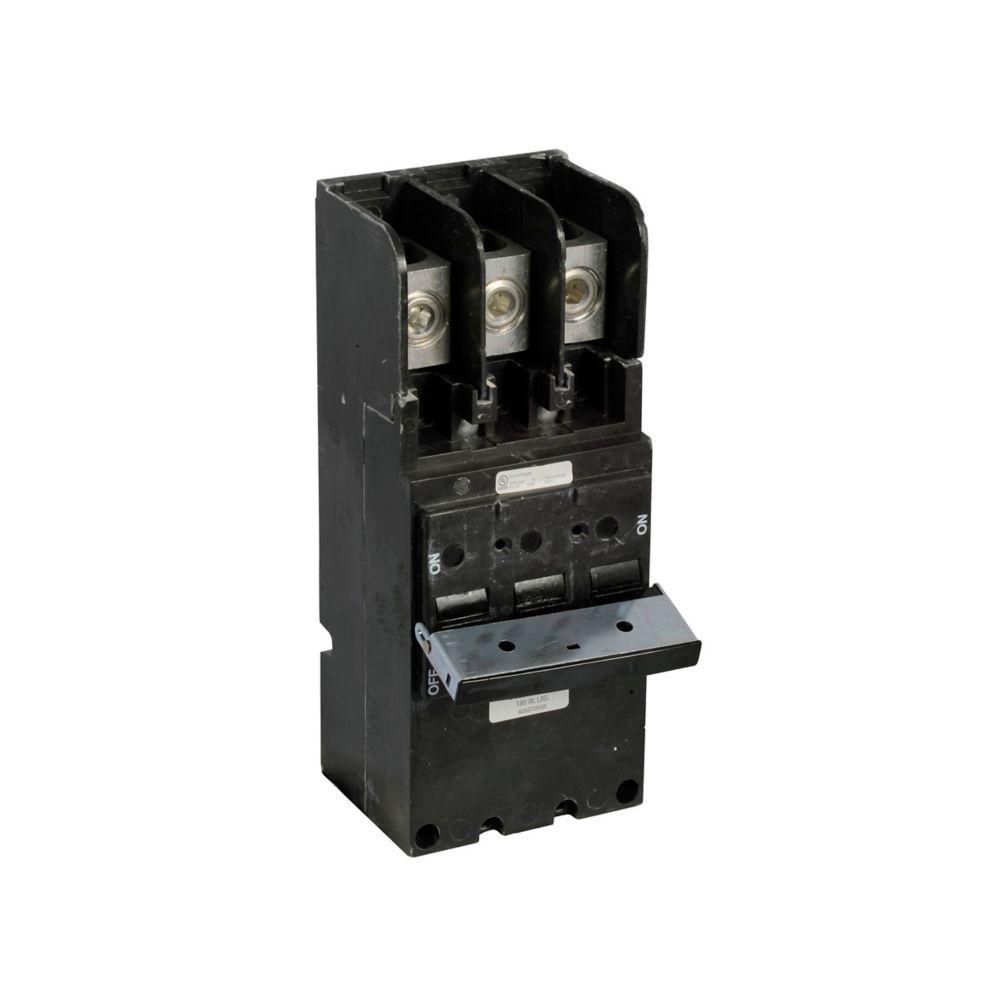

EATON Main Circuit Breaker, Type BJ, 240 V AC, 200 A, 10 kAIC Interrupt, 3 Pole, 3 ph, 2 AWG to 300 kcmil Copper/Aluminum Wire, Plug-On Mount, 60 to 75 deg C, 8 in L x 3-1/2 in W x 3-1/2 in H

• 2 AWG to 300 kcmil copper aluminum at 60 or 75 deg C wire range
• Requires at least a 150 A load center breaker uses two 1 in pole spaces and two 1 in pole spaces on right side of load center

EATON Handle Lock, 2 Pole, For Use With: Type CH 3/4 in Molded Case Circuit Breaker

• Handle lockoff

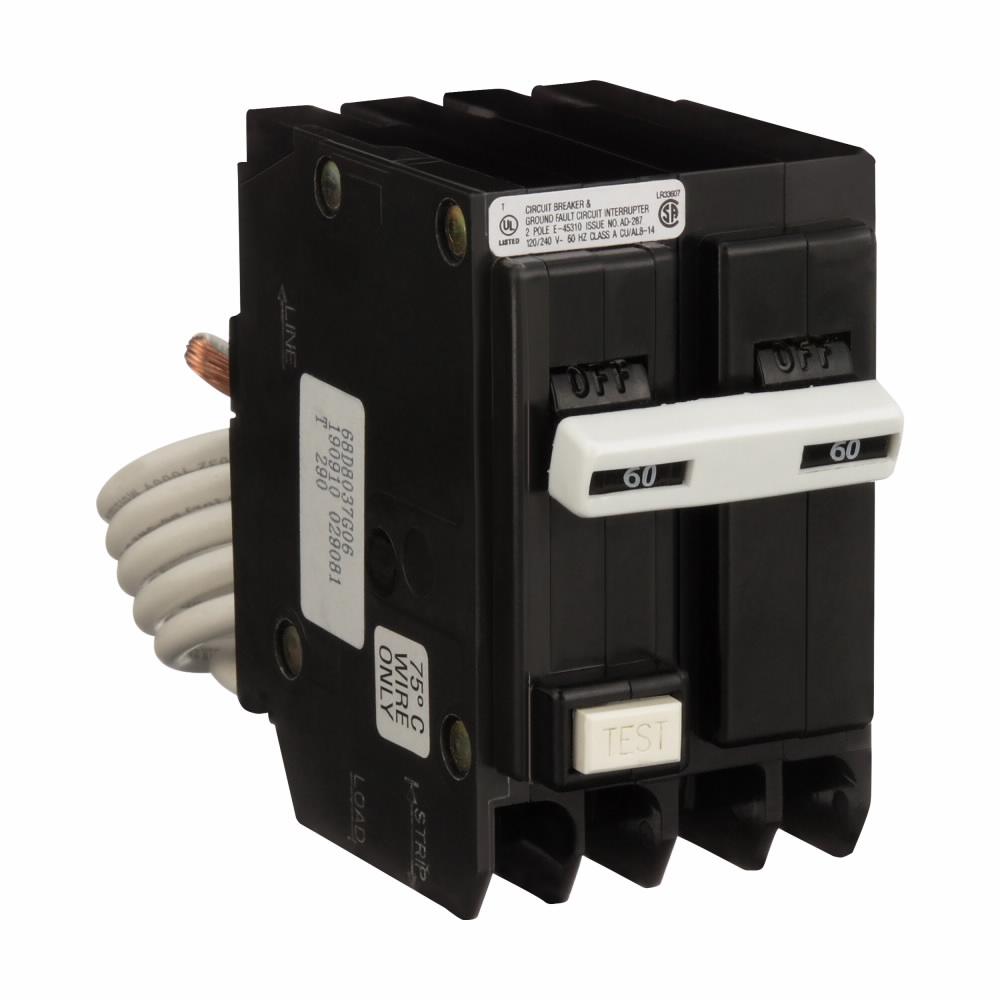

EATON Ground Fault Circuit Breaker, Type GFTCB Self-Test, 120/240 V AC, 60 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Plug-On Connection, 14 to 6 AWG Wire, 40 deg C, 4 in L x 2 in W x 3 in H Dimensions

EATON Hub Closure Plate, Blank Large, For Use With: Type CH 3/4 in Loadcenter and Group 2 Rainproof Conduit Hub, 4-3/4 in L x 4-3/4 in W x 1/4 in H

EATON Proximity Sensor, 4-Wire Limit Switch Modular Style Shielded, Series: E51, Inductive Sensing Method, 13 mm Sensing Distance, Top Sensing Position, <0.3 % Accuracy, 1NO-1NC Contact Configuration, 120 V AC, 1 A, 15/50 Hz Frequency Response, Screw Connection, 1.54 x 1.78 x 4.53 in Size, NEMA 3/3S/4/4X/6/6P/12/13/IP67 Enclosure, -13 to 158 deg F, Die Cast Zinc, Environmental Conditions: 95% Non-Condensing Relative Humidity

• Rugged construction is ideal for industrial environments
• FKM gaskets ensure a positive seal and high resistance to industry chemicals
• Direct replacement for worn OUT limit switches
• Sensor heads and bodies feature captive screws to eliminate loss
• All sensor heads include a selector switch to program output function to either no or NC
• Sensor bodies feature bifurcated engagement prongs for a reliable connection when plugging into receptacle stabs
• Engagement key between sensor body and receptacle prevents improper assembly
• Sensors accommodate both us and DIN mounting dimensions
• Wiring terminals feature captive pressure plate saddles for 18 to 12 AWG wire, a green screw identified ground terminal is also included
• Standard frequency
• Die cast zinc receptacle and housing, plastic head enclosure material
• Lights when output is On, one LED for each output indicators
• Solid state output contact rating

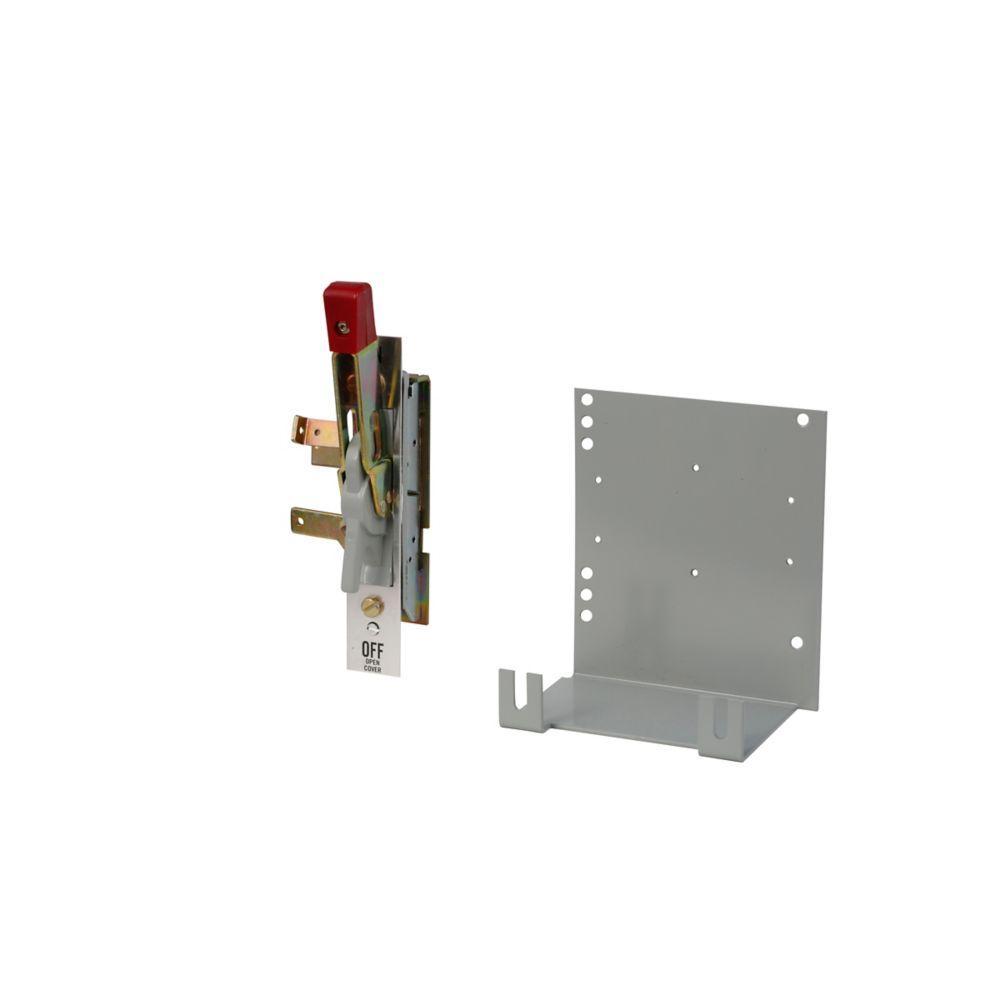

EATON Handle Mechanism, Type SM, Right Handle Mounting Position, For Use With: Type DS 30/60/100 A Non-Fusible Disconnect Switch and C Series F, MCP, EB, HMCP Frame Molded Case Circuit Breaker, 11.6 x 6.4 x 5 in Dimensions

• Type SM safety handle mechanism is designed to prevent tampering by unauthorized individuals and provides the optimum in personnel safety
• When properly applied, these mechanisms conform to type 12 and JIC requirements and are well suited for use by the automotive and machine tool industries
• Completely preassembled in a rugged cast housing, the type SM safety handle mechanism includes a predrilled mounting plate for simplified customer installation
• All type SM safety handle mechanisms can be used on any size enclosure

Cutler-Hammer Meter Pedestal, Lever Bypass, 600 V, 320 A, Bottom/Underground Feed, 4 Jaws, 2/0 AWG to 250 kcmil, 1/0 to 14 AWG Wire, Solid Top Hub, Ringless Cover, Line/Load Terminal, Bolted-On Mounting, 4.93 in L x 12.97 in W x 58 in H Dimensions

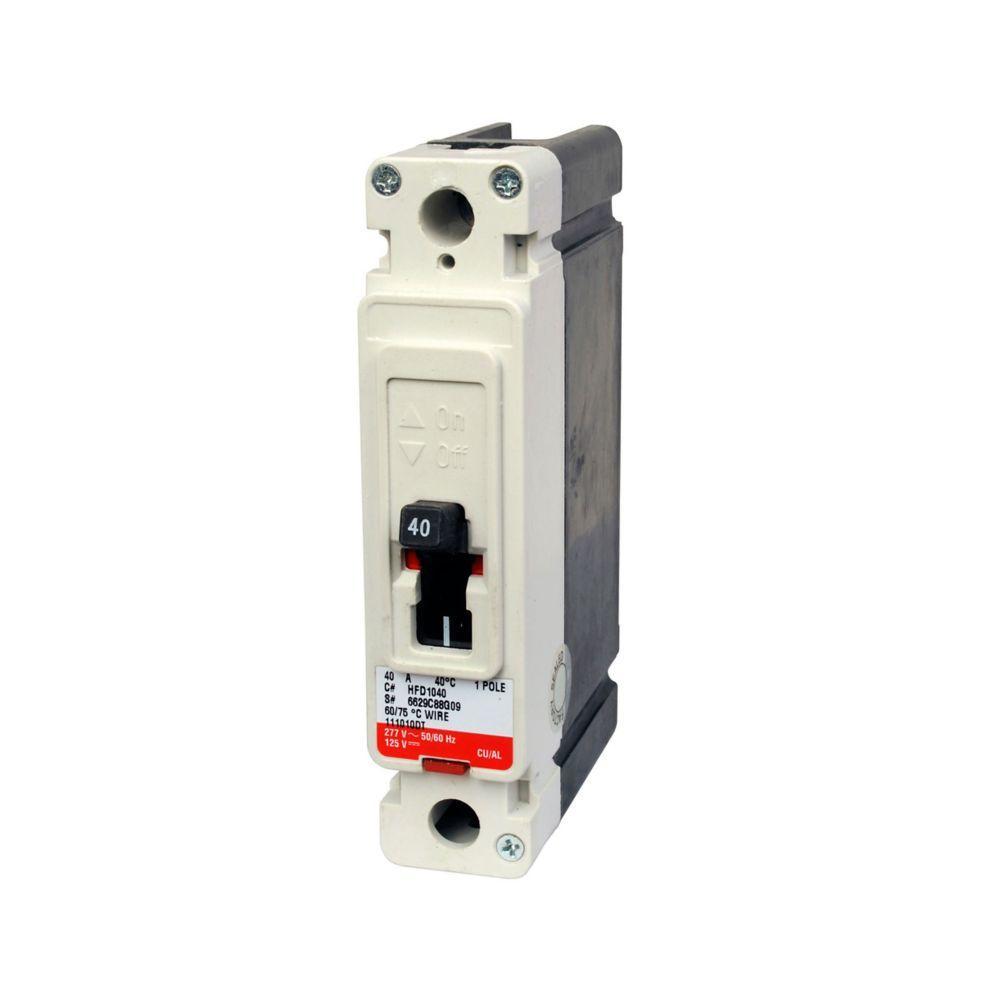

EATON Molded Case Circuit Breaker, Type HFD, Series: C Series, 347 V AC/125 V DC, 40 A, 50/60 Hz, 65 kAIC at 480 VAC/100 kAIC at 240 VAC Interrupt, F Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, Line/Load, Surface Mount, 40 deg C, 3.38 x 1.38 x 6 in, Glass Polyester

• Patented contact design features high speed "blow-open" action, resulting in superior performance
• 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating

EATON Operator Button, Type C Short Multi-Function Oil/Watertight, Series: E30, 30.5 mm Size, NEMA 3/3R/4/4X/12/13 NEMA Rating, Square Shape, Legend: AUTO, Molded Acetyl Resin, Black

• Colorfast, wear-resistant, molded acetal resin
