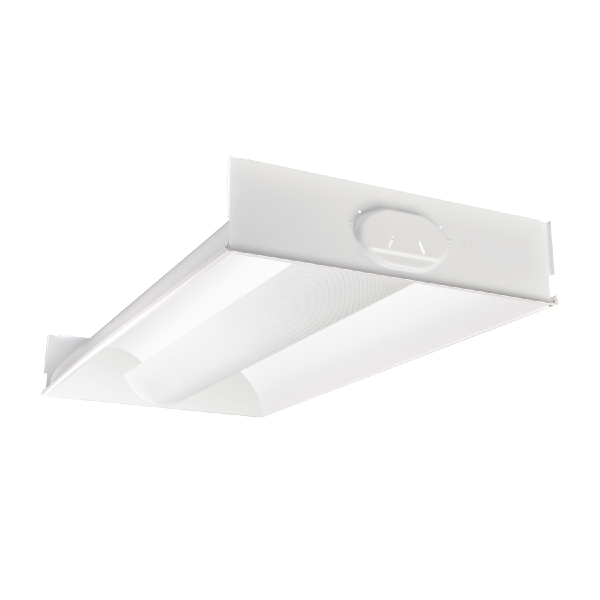

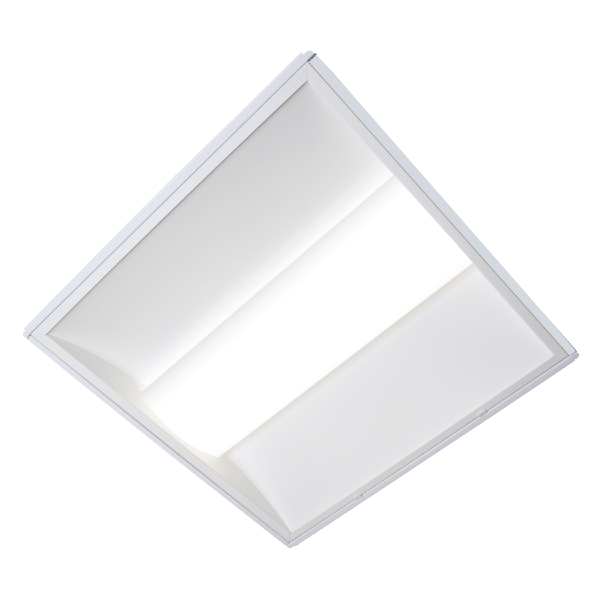

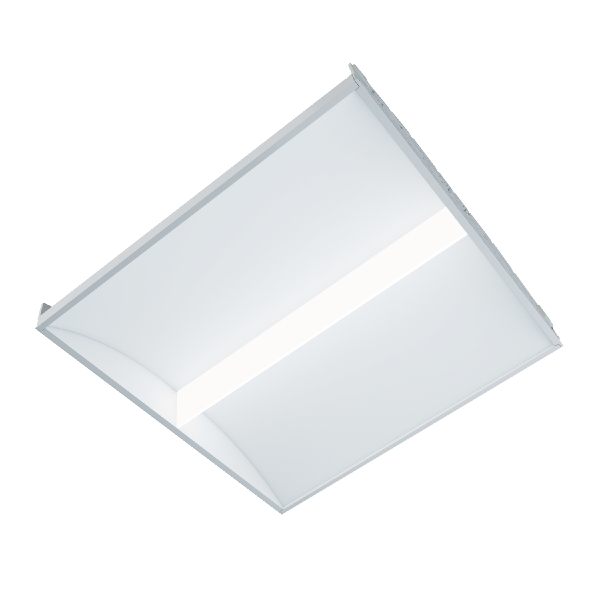

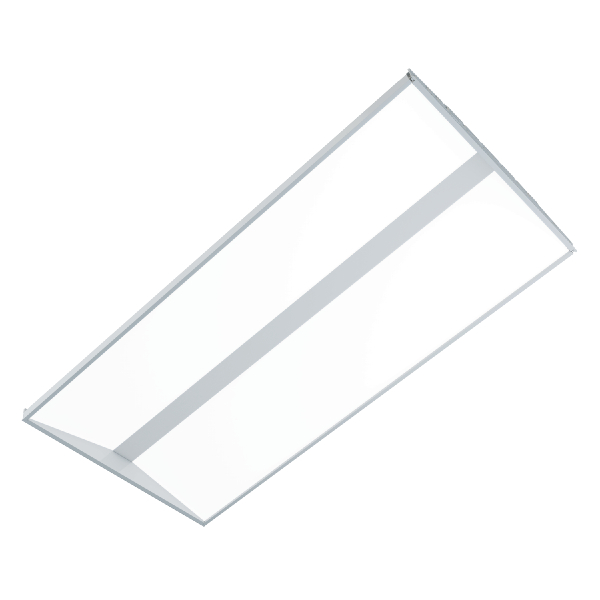

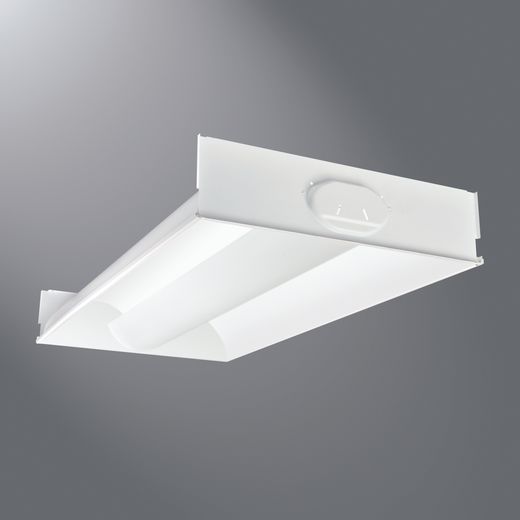

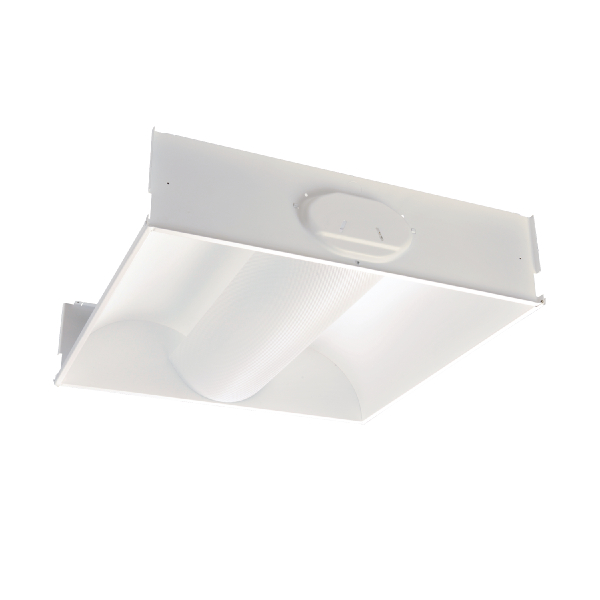

The Ovation series is a complete family of recessed direct/indirect luminaires featuring pleasant modern architectural styling, computer designed optics and the latest energy efficient lamp and ballast technology. The luminaire combines a matte white indirect reflector and a perforated direct lamp shield to provide optimum brightness control. All components are located above the ceiling plane for a clean architectural appearance in the finished space. The 2RDI-IC is designed for installations when the housing will be in direct contact with insulation. Carefully balanced design elements combine to provide an efficient and exciting alternative to traditional general lighting. Ovation is an excellent choice for a wide variety of commercial applications.

Metalux Specification Perforated Lamp Shield, Round, 120 to 277 VAC, 0.329 A, T8 Fluorescent Lamp, 91 W Lamp, 3 Lamps, Direct/Indirect Recessed Trim, Electronic Ballast, 3100 Lumens, Ceiling Mounting, Steel Housing Material, 47.312 in L x 6.125 in W x 23.312 in H Dimensions

• Nominal 6 in deep housing is die formed of code gauge, prime cold rolled steel
• Ballast can be removed from below without tools or from above using the unique ballast mounting/access plate
• Ballasts are CBM/ETL Class P and are positively secured
• Biax models use 2G11 base lamp holders with double edge wiping action pressure lock contacts and vertically oriented lamp support clips
• Durable cold rolled steel with multistage, iron phosphate pretreatment and white enamel finish to ensure maximum bonding and rust inhibition
• Indirect reflector has high reflectance baked matte white enamel finish for luminous uniformity
• Fifth light ballast options are offered for both 0 to 10 VAC continuous dimming and DALI applications
• Positively retained direct lamp shield is constructed of heavy gauge perforated steel with high reflectance painted after fabrication finish and milky white overlay diffuser for visual comfort
• Biaxial, T8 and T5/T5HO lamp sources
