RadioRA® 2 Repeaters extend the range of Radio Frequency (RF) signals that are sent between devices. Repeaters ensure error-free communication between system components and prevent interference from neighboring systems.

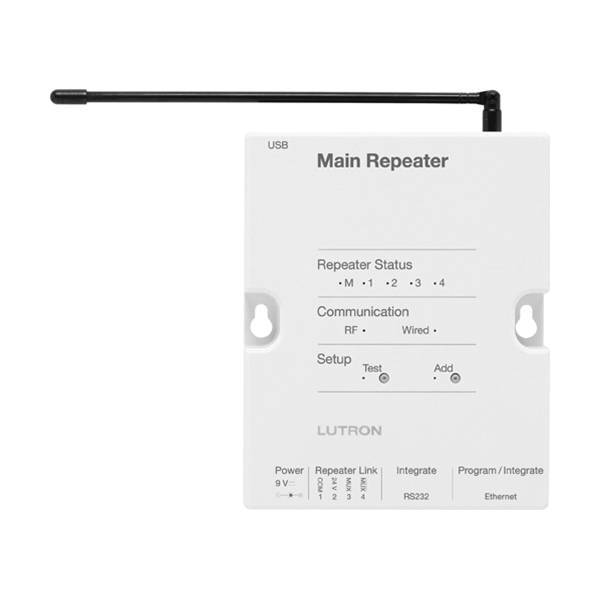

RadioRA® Main Repeater, RS485 Port, 300 mA at 120 VAC Supply, Ceiling/Surface Mount, 0 to 40 deg C, Environmental Conditions: 0 to 90% Non-Condensing Humidity, 5-1/4 in H x 4-1/4 in W x 1-1/6 in D

• For systems that extend up to 30 ft (9 m), one (1) main repeater is required to set up the system

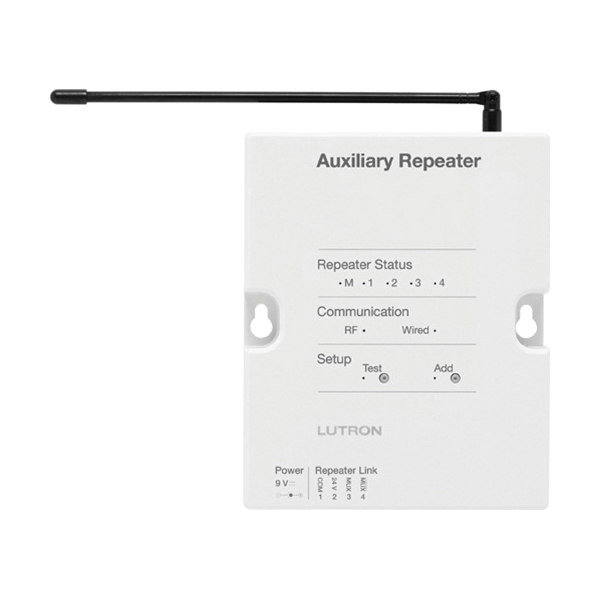

• Up to four (4) auxiliary repeaters can be added to extend the RF range for larger system applications
• Each repeater has an RF range of 30 ft, covering a total area of approximately 2500 sq ft
• One LED on, Ethernet cable plugged in, powered by the 9 V adapter test condition
• Power failure memory should power be interrupted, the repeater will return to its previous state when power is restored
• Tested to withstand electrostatic discharge without damage or memory loss
• Tested to withstand surge voltages without damage or loss of operation
• Mount on a wall, ceiling, or level surface using the two M3 screws provided
• Ethernet, RS232 and RS485 main repeater, white color
• 6.25 in antenna length
