Panduit® LCA500-12-6

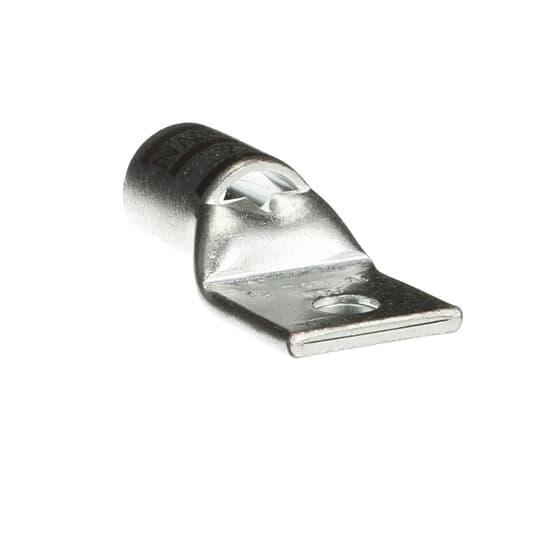

Panduit® Pan-Lug™ LCA500-12-6 1-Hole Compression Lug Connector With Inspection Window, 500 kcmil Stranded Copper Conductor, Die Code: P87, 1/2 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCA500-12-6
  • Revere Part #: 98406
  • UPC: 074983900640
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Lug Connector, 1-Hole, Series: LCA, Stranded Copper Conductor, 500 kcmil Conductor, Die Code: P87, 35 kV, 1/2 in Stud, Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 3.55 in Overall Length, Standard/Inspection Window Barrel, 0.84 in ID x 1.06 in OD x 1.75 in L Barrel, Specifications: 1-13/16 in L Wire Strip, Tin Plated, 90 deg C, 1-13/16 in Mounting Hole, Tin Plated Copper, Brown
