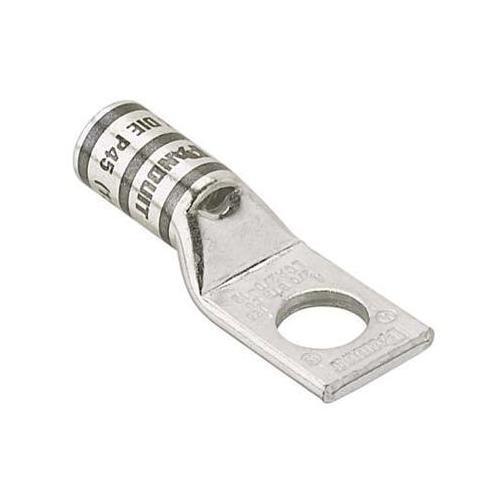

Panduit® LCA500-58-6

Panduit® Pan-Lug™ LCA500-58-6 1-Hole Type LCA Compression Connector Lug, 500 kcmil, Die Code: P87, 42.952 in L Stud, Copper

  • Manufacturers: Panduit
  • MFR Part #: LCA500-58-6
  • Revere Part #: 98407
  • UPC: 074983900657
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole Type LCA, 500 kcmil Conductor, Die Code: P87, 35 kV, 42.952 in L Stud, Standard Tongue, 1.54 in W x 5.6 in THK Tongue, 3.76 in Overall Length, Standard Barrel, 1-3/4 in L Barrel, Specifications: Tin Plated Finish, 90 deg C, 1.81 in Mounting Hole, Copper, Brown

  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCA500-58-6_Full_Engineering_Drawing.pdf
  • pdf Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCAS6-14-L_Technical_Bulletin.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCD4-10A-L_Installation_Manual.pdf
  • video VIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
