Panduit® LCA250-12-X

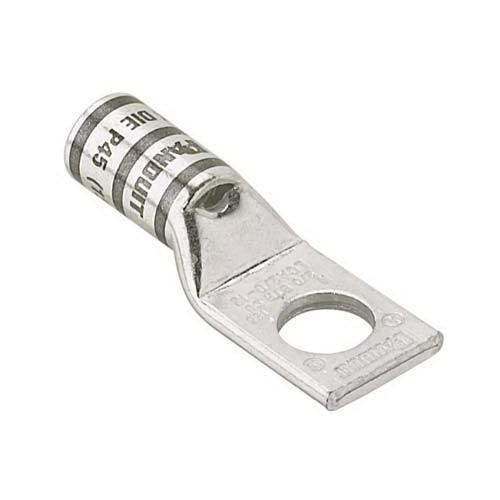

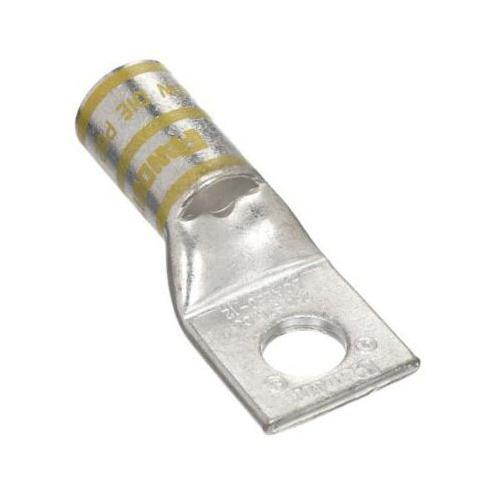

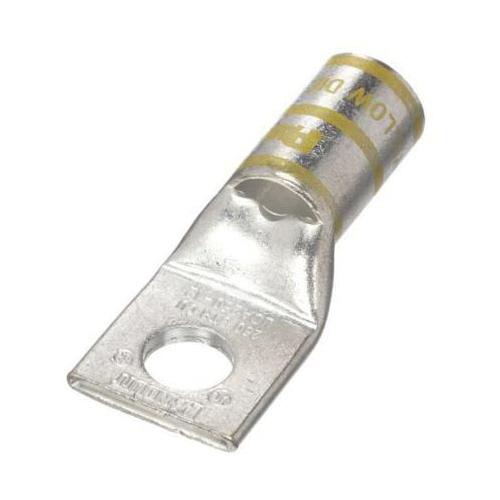

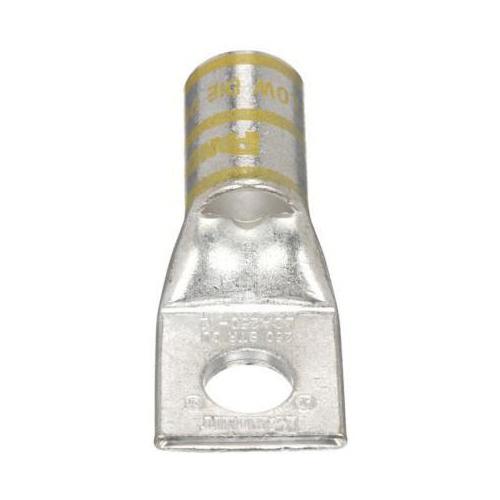

Panduit® Pan-Lug™ LCA250-12-X 1-Hole Compression Lug Connector With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: P62, 1/2 in Stud, Copper

  • Manufacturers: Panduit
  • MFR Part #: LCA250-12-X
  • Revere Part #: 98379
  • UPC: 074983900459
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Lug Connector, 1-Hole, Series: LCA, Stranded Copper Conductor, 250 kcmil Conductor, Die Code: P62, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 2.78 in Overall Length, Standard/Inspection Window Barrel, 1-1/4 in L Barrel, Specifications: 1-5/16 in L Wire Strip, Tin Plated, 90 deg C, 1-5/16 in Mounting Hole, Copper, Yellow

  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCA250-12-X_Full_Engineering_Drawing.pdf
  • pdf Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC8-10AW-L_Technical_Bulletin.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCD4-10A-L_Installation_Manual.pdf
  • video VIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
