Panduit® LCC400-12-6

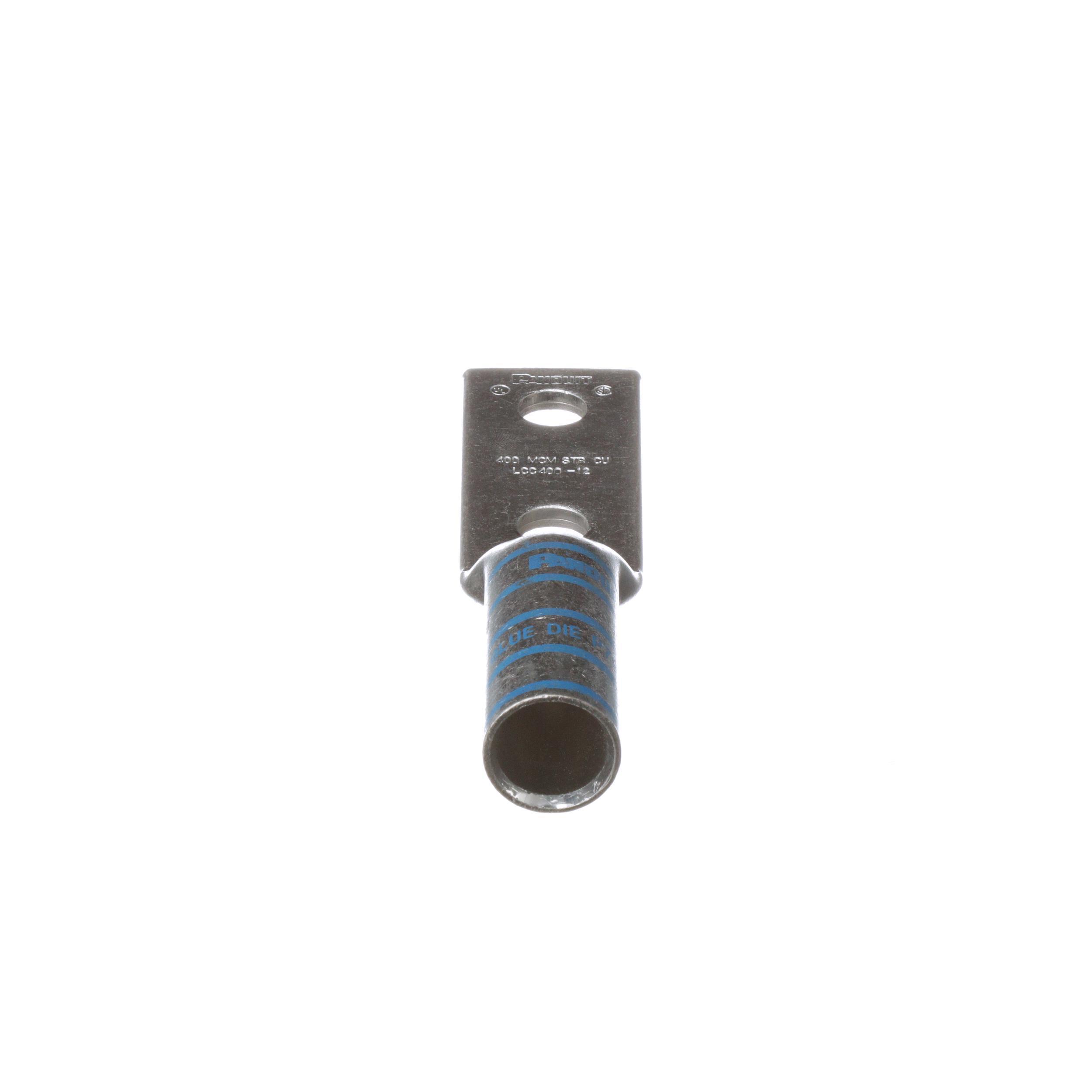

Panduit® Pan-Lug™ LCC400-12-6 2-Hole Compression Connector Lug, 400 kcmil Stranded Copper Conductor, Die Code: P76, 1/2 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCC400-12-6
  • Revere Part #: 98523
  • UPC: 074983902606
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Connector Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 400 kcmil Conductor, Die Code: P76, 35 kV, 1/2 in Stud, Straight Tongue, 1.39 in W x 0.18 in THK Tongue, 6.1 in Overall Length, Long Barrel, 0.76 in ID x 0.95 in OD x 2.29 in L Barrel, 1-3/4 in Stud Hole Spacing, 2-3/8 in L Wire Strip, 90 deg C, 2-3/8 in Mounting Hole, Tin Plated Copper, Blue

Barrel Size : 0.76 in ID x 0.95 in OD x 2.29 in L
Barrel Style : Long without Inspection Window
Barrel Type : Long without Inspection Window
Color : Blue
Conductor Size : 400 kcmil
Conductor Type : Stranded Copper
Die Code : P76
Material : Tin Plated Copper
Mounting Hole Size : 2-3/8 in
Overall Length : 6.1 in
Series : LCC
Specifications : 1-3/4 in Stud Hole Spacing, 2-3/8 in L Wire Strip
Stud Size : 1/2 in
Temperature Rating : 90 deg C
Tongue Size : 1.39 in W x 0.18 in THK
Tongue Style : Straight
Tongue Type : Straight
Type : 2-Hole
Voltage Rating : 35 kV
  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC400-12-6_Full_Engineering_Drawing.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC8-10AW-L_Installation_Manual.pdf
  • pdf Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC8-10AW-L_Technical_Bulletin.pdf
  • video VIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
