Panduit® LCB2/0-38-X

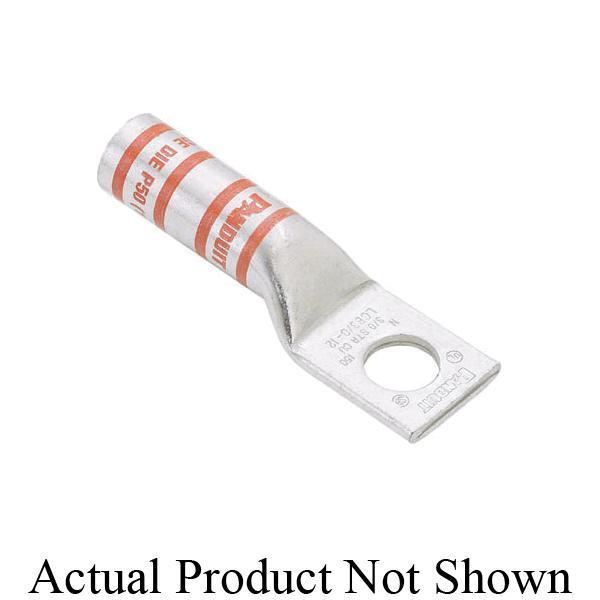

Panduit® Pan-Lug™ LCB2/0-38-X 1-Hole Compression Connector Lug, 2/0 AWG Copper/Stranded Conductor, Die Code: P45, 3/8 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCB2/0-38-X
  • Revere Part #: 98507
  • UPC: 074983901302
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

The LCB2/0-38-X Tin-Plated Copper Compression Lug, one-hole, long barrel, has color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection.

Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole, Series: LCB, Copper/Stranded Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 2.82 in Overall Length, Long Barrel, 0.45 in ID x 0.58 in OD x 1.5 in L Barrel, 1-9/16 in L Wire Strip, 90 deg C, 1-5/8 in Mounting Hole, Tin Plated Copper, Black

Barrel Size : 0.45 in ID x 0.58 in OD x 1.5 in L
Barrel Type : Long without Inspection Window
Color : Black
Conductor Size : 2/0 AWG
Conductor Type : Copper/Stranded
Die Code : P45
Material : Tin Plated Copper
Mounting Hole Size : 1-5/8 in
Overall Length : 2.82 in
Series : LCB
Specifications : 1-9/16 in L Wire Strip
Stud Size : 3/8 in
Temperature Rating : 90 deg C
Tongue Size : 0.85 in W x 0.13 in THK
Tongue Type : Straight
Type : 1-Hole
Voltage Rating : 35 kV
