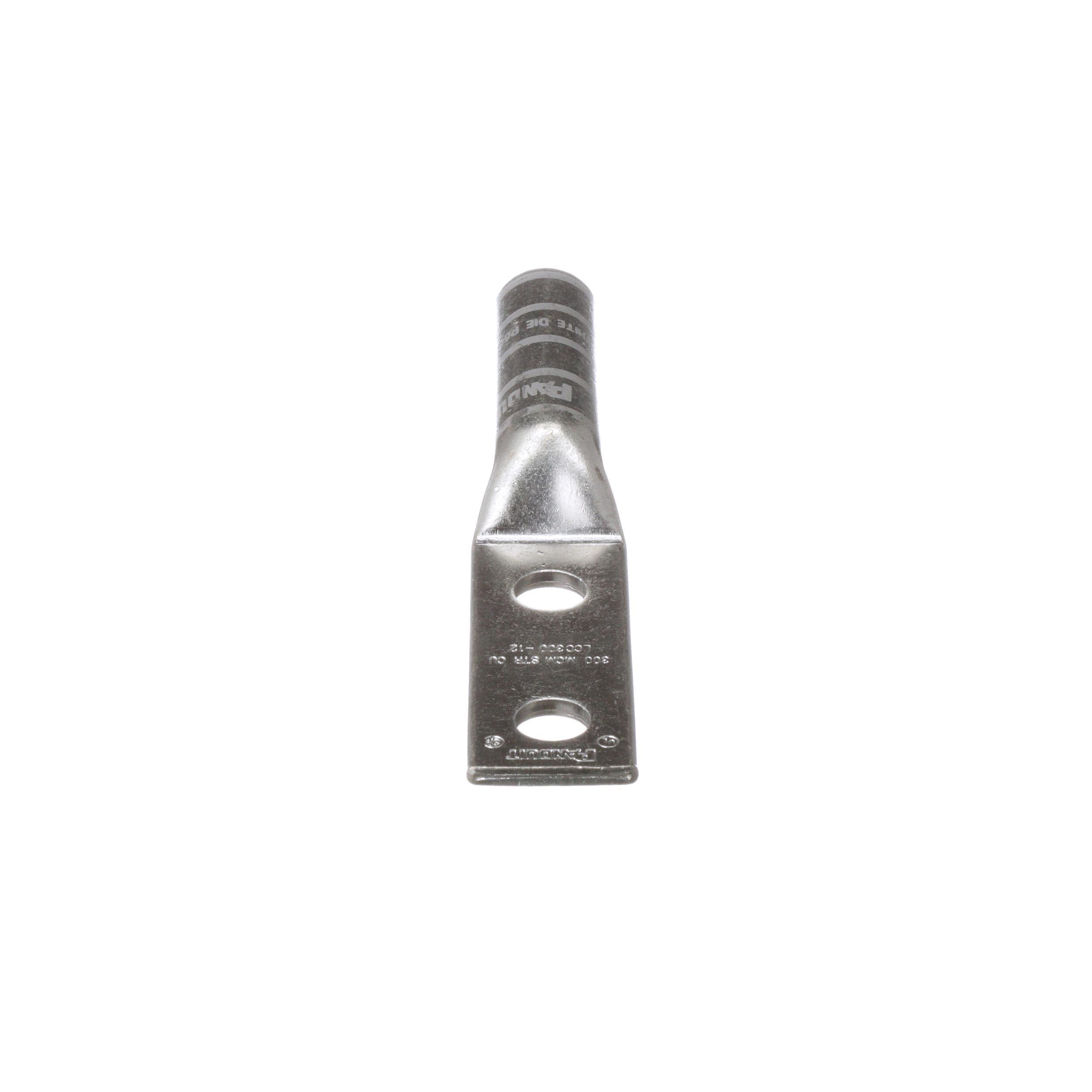

Panduit® LCC300-12-X

Panduit® Pan-Lug™ LCC300-12-X 2-Hole Compression Connector Lug, 300 kcmil Stranded Copper Conductor, Die Code: P66, 1/2 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCC300-12-X
  • Revere Part #: 98520
  • UPC: 074983902507
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Connector Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 300 kcmil Conductor, Die Code: P66, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 5.94 in Overall Length, Long Barrel, 0.65 in ID x 0.81 in OD x 2.24 in L Barrel, 1-3/4 in Stud Hole Spacing, 2-15/16 in L Wire Strip, 90 deg C, 2-5/16 in Mounting Hole, Tin Plated Copper, White

  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC300-12-X_Full_Engineering_Drawing.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC8-10AW-L_Installation_Manual.pdf
  • pdf Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC8-10AW-L_Technical_Bulletin.pdf
  • video VIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
