Panduit® LCB3/0-12-X

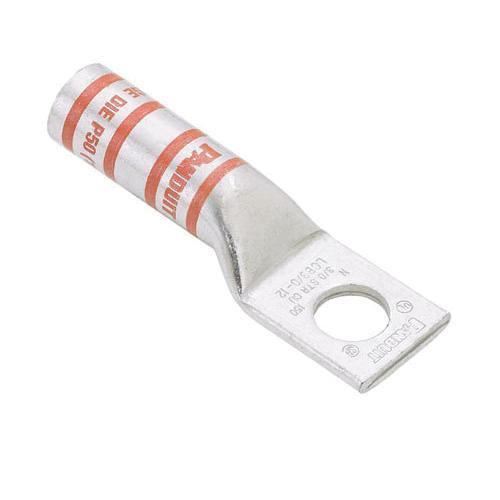

Panduit® Pan-Lug™ LCB3/0-12-X 1-Hole Compression Connector Lug, 3/0 AWG Stranded Copper Conductor, Die Code: P50, 42.767 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCB3/0-12-X
  • Revere Part #: 98509
  • UPC: 074983901357
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole, Series: LCB, Stranded Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kV, 42.767 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 3.12 in Overall Length, Long Barrel, 0.51 in ID x 0.64 in OD x 1.5 in L Barrel, 1-9/16 in L Wire Strip, 90 deg C, 1.56 in Mounting Hole, Tin Plated Copper, Orange

Barrel Size : 0.51 in ID x 0.64 in OD x 1.5 in L
Barrel Type : Long
Color : Orange
Conductor Size : 3/0 AWG
Conductor Type : Stranded Copper
Die Code : P50
Material : Tin Plated Copper
Mounting Hole Size : 1.56 in
Overall Length : 3.12 in
Series : LCB
Specifications : 1-9/16 in L Wire Strip
Stud Size : 42.767 in
Temperature Rating : 90 deg C
Tongue Size : 0.96 in W x 0.13 in THK
Tongue Type : Straight
Type : 1-Hole
Voltage Rating : 35 kV
  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCB3_0-12-X_Full_Engineering_Drawing.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC8-10AW-L_Installation_Manual.pdf
  • pdf Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC8-10AW-L_Technical_Bulletin.pdf
  • video VIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
