Panduit® Pan-Term® Splices are designed and manufactured for fast assembly, and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

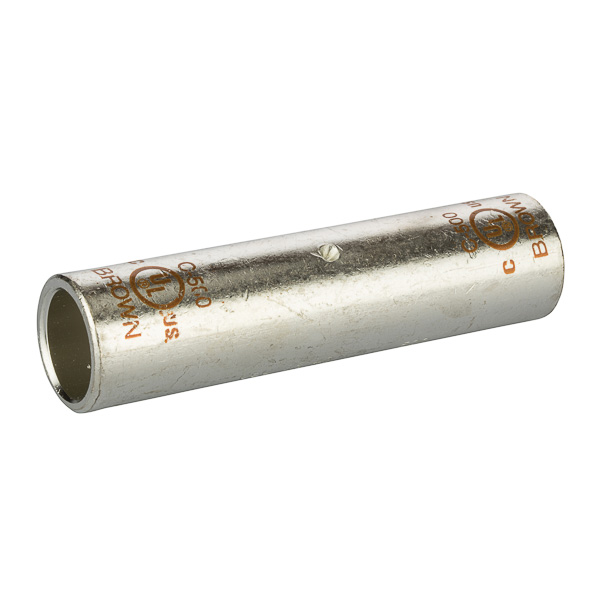

Panduit® Pan-Lug™ Pan-Term™ Butt Splice, Compression, Series: SCS, Stranded Copper Conductor, 500 kcmil Conductor, 2.87 in Length, 0.84 in ID x 1.05 in OD Barrel, 35 kV, Specifications: 1-3/8 in L Wire Strip, Standard Barrel Configuration, 90 deg C, Copper, Brown, Electro Plated Tin
| Barrel Size | : | 0.84 in ID x 1.05 in OD |
| Color | : | Brown |
| Conductor Size | : | 500 kcmil |
| Conductor Type | : | Stranded Copper |
| Finish | : | Electro Plated Tin |
| Length | : | 2.87 in |
| Material | : | Copper |
| Series | : | SCS |
| Specifications | : | 1-3/8 in L Wire Strip, Standard Barrel Configuration |
| Temperature Rating | : | 90 deg C |
| Type | : | Compression |
| Voltage Rating | : | 35 kV |
- Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over insertion of conductor
- Tin plated to inhibit corrosion
Full Engineering Drawing
