Panduit® DNF10-250FI-L

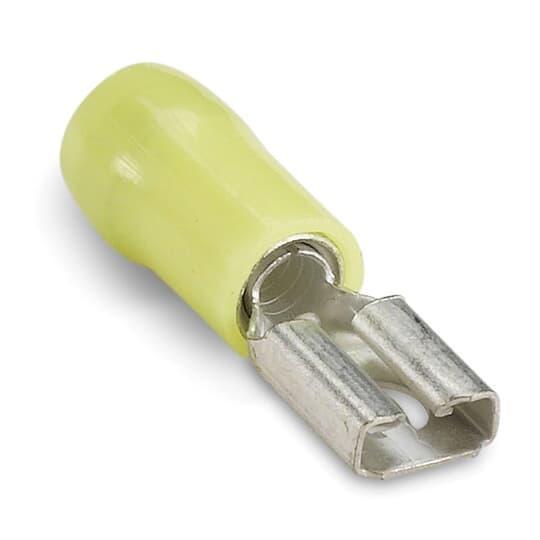

Panduit® Pan-Term™ DNF10-250FI-L Type DNF-FI Loose Piece Vibration-Resistant Female Disconnect, 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Brass, Yellow, Fully Insulated

  • Manufacturers: Panduit
  • MFR Part #: DNF10-250FI-L
  • Revere Part #: 97629
  • UPC: 074983826285
  • UNSPSC: 39121409
  • Min. Order Qty: 1
  • Qty. Interval: 50
  • Availability: loading Branch Available

Panduit® Pan-Term™ Female Disconnect, Type DNF-FI Loose Piece Vibration-Resistant, Stranded Conductor, 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Crimp Terminal, 600 V, Specifications: 0.22 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip, 221 deg F, Brass, Yellow, Tin Plated, 0.95 in L x 0.36 in W x 0.27 in H Dimensions, Insulated: Fully Insulated

Barrel Type : Funnel Entry/Sleeved
Color : Yellow
Conductor Size : 10 AWG
Conductor Type : Stranded
Dimensions : 0.95 in L x 0.36 in W x 0.27 in H
Finish : Tin Plated
Insulated : Fully Insulated
Material : Brass
Specifications : 0.22 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size : 0.25 in W x 0.032 in THK
Temperature Rating : 221 deg F
Terminal Type : Crimp
Type : Type DNF-FI Loose Piece Vibration-Resistant
Voltage Rating : 600 V
