Sta-Kon® 10RC-250F

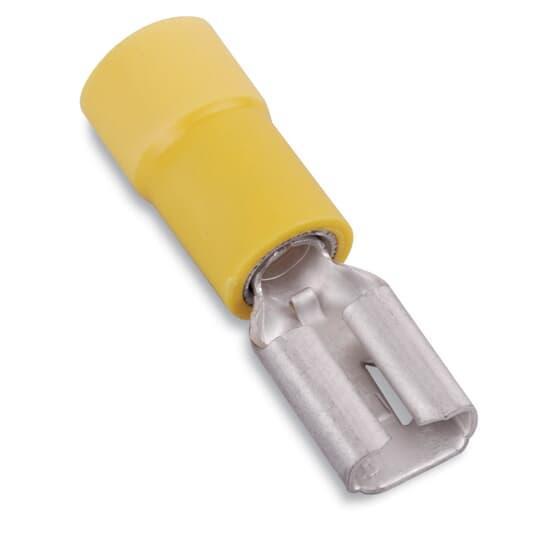

Sta-Kon® 10RC-250F Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Yellow, Insulated

  • Manufacturers: ABB
  • MFR Part #: 10RC-250F
  • Revere Part #: 115303
  • UPC: 786210800523
  • UNSPSC: 39121447
  • Replacement Part #: 7TAI029690R0000
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Sta-Kon® Female Disconnect, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 V AC, 1/4 in Dia Maximum Insulation, 0.04 in THK Stock, 105 deg C, Brass, Yellow, Electroplated Tin, 1.03 in L x 0.29 in W, Insulated: Insulated

Barrel Type : Brazed Seam
Color : Yellow
Conductor Size : 16 to 14 AWG
Dimensions : 1.03 in L x 0.29 in W
Finish : Electroplated Tin
Insulated : Insulated
Material : Brass
Series : 250
Specifications : 1/4 in Dia Maximum Insulation, 0.04 in THK Stock
Tab Size : 0.25 in W x 0.032 in THK
Temperature Rating : 105 deg C
Terminal Type : Crimp
Voltage Rating : 600 V AC
  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sta-Kon_14RB-2577_Specification_Sheet.pdf
