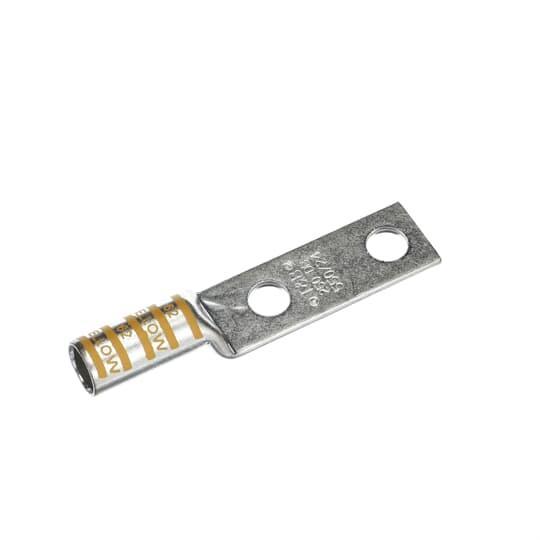

Color-Keyed® 54868BE
Color-Keyed® 54868BE 54800 2-Hole Non-Insulated Compression Lug, 250 kcmil Copper Conductor, Die Code: 62, 1/2 in Stud, Copper
- Manufacturers: ABB
- MFR Part #: 54868BE
- Revere Part #: 115940
- UPC: 786210898056
- UNSPSC: 39121405
- Replacement Part #: 7TAH007800R0032
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price: Login For Price
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Color-Keyed® Compression Lug, 2-Hole Non-Insulated, Series: 54800, Copper Conductor, 250 kcmil Conductor, Die Code: 62, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1.13 in W x 0.14 in THK Tongue, 4.92 in Overall Length, Blind End/Long Barrel, 0.77 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Yellow
| Barrel Size | : | 0.77 in Dia |
| Barrel Type | : | Blind End/Long |
| Color | : | Yellow |
| Conductor Size | : | 250 kcmil |
| Conductor Type | : | Copper |
| Die Code | : | 62 |
| Material | : | Copper |
| Mounting Hole Size | : | 0.531 in |
| Overall Length | : | 4.92 in |
| Series | : | 54800 |
| Specifications | : | 1-3/4 in Stud Hole Spacing, Tin Plated |
| Stud Size | : | 1/2 in |
| Tongue Size | : | 3 in L x 1.13 in W x 0.14 in THK |
| Tongue Type | : | Straight |
| Type | : | 2-Hole Non-Insulated |
| Voltage Rating | : | 35 kV |
