Panduit® LCCX1/0-12-X

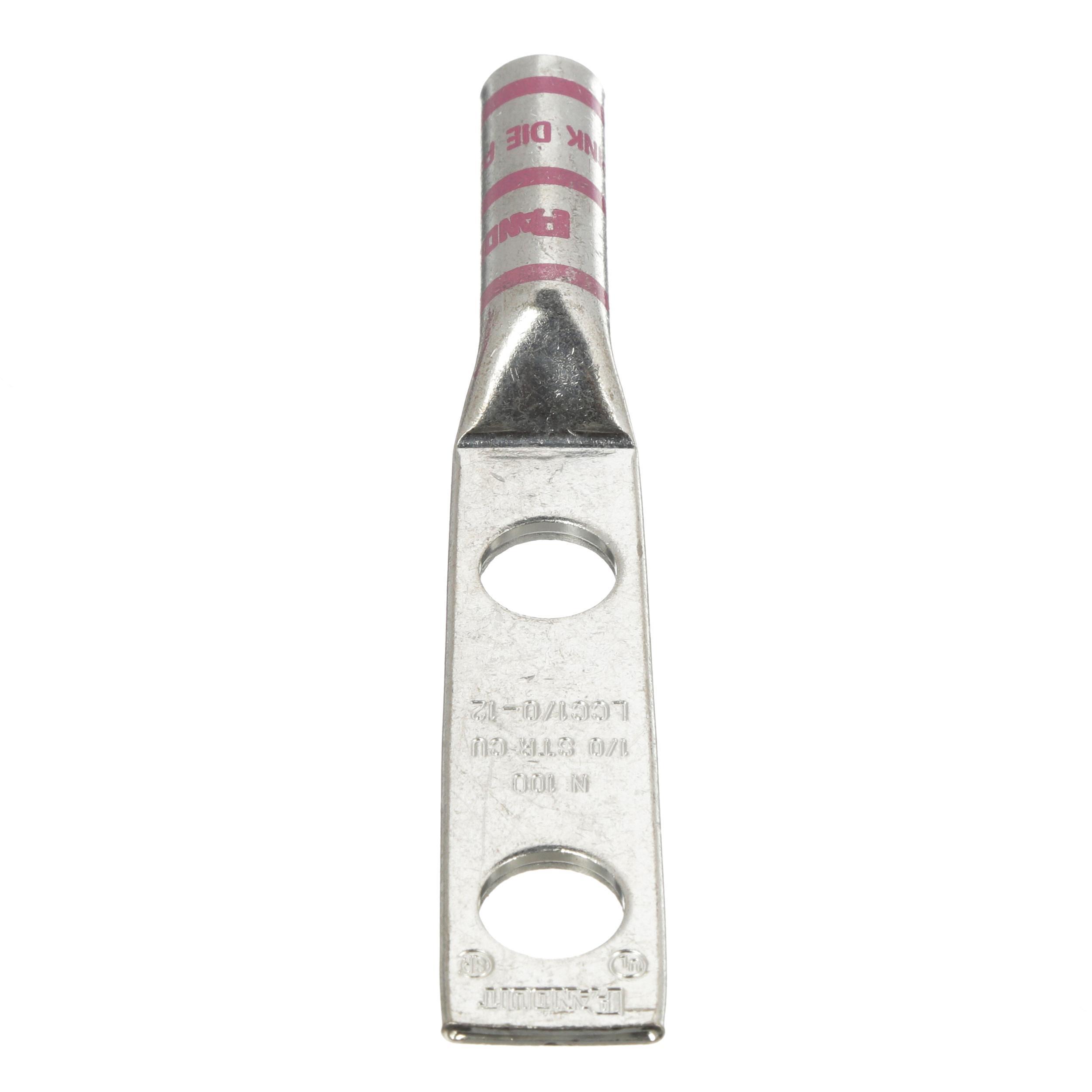

Panduit® Pan-Lug™ LCCX1/0-12-X 2-Hole Compression Connector Lug, 1/0 AWG Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P42, 1/2 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCCX1/0-12-X
  • Revere Part #: 1088420
  • UPC: 074983425778
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Connector Lug, 2-Hole, Series: LCCX, Extra-Flexible/Flexible/Stranded Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, 1/2 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 4.83 in Overall Length, Long Barrel, 0.45 in ID x 0.58 in OD x 1.5 in L Barrel, 1-3/4 in Stud Hole Spacing, 1.56 in L Wire Strip, 90 deg C, 1.56 in Mounting Hole, Tin Plated Copper, Pink

  • pdf Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC2-14BW-Q_Technical_Bulletin.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC6-38CW-L_Installation_Manual.pdf
  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCCX1_0-12-X_Full_Engineering_Drawing.pdf
  • video VIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
