3M™ 7000132452

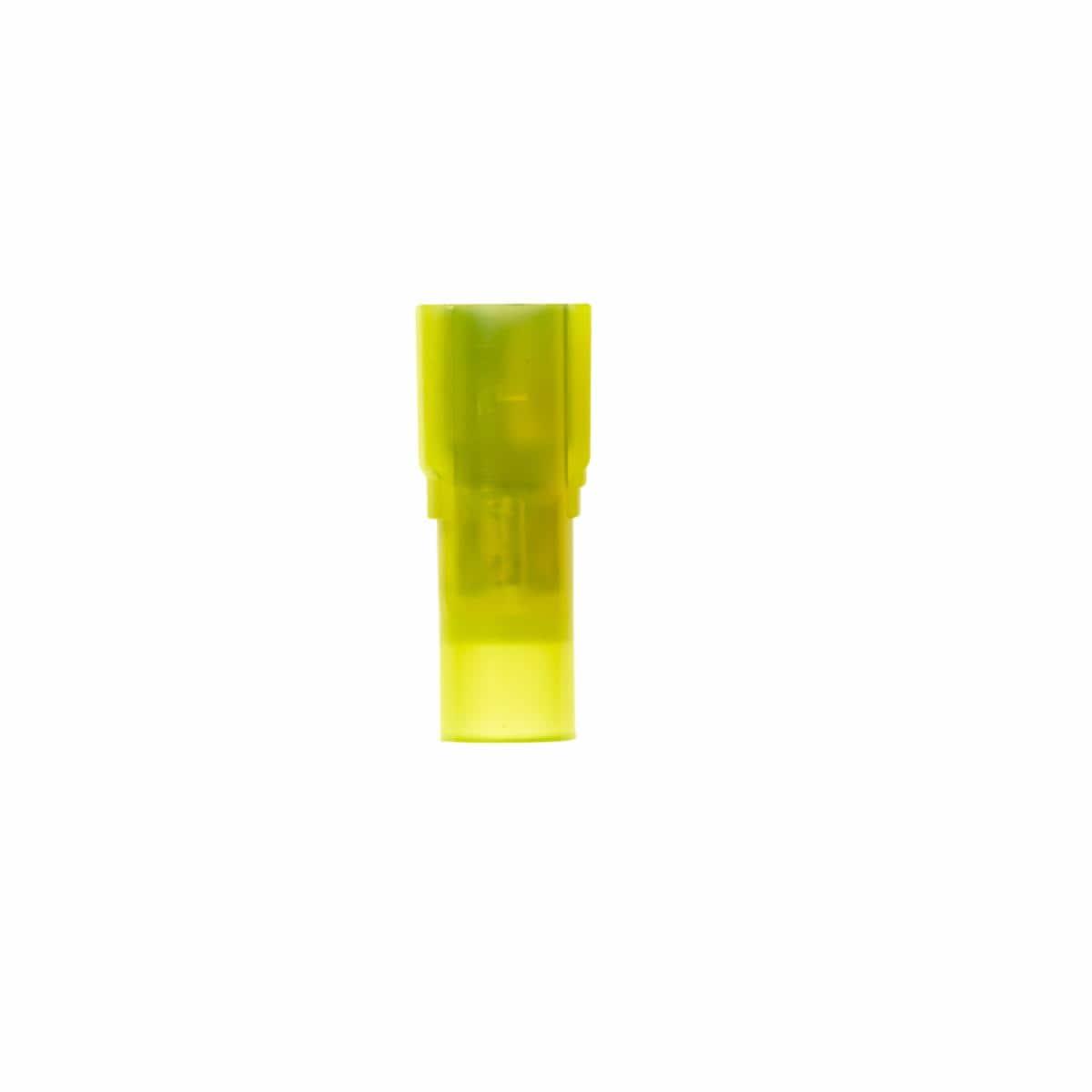

3M™ 7000132452 Insulated Disconnect Terminal, 12 to 10 AWG Conductor, 1/4 in Tab, 0.128 in ID x 0.25 in L Interlocking Barrel, ETP Copper, Yellow, Insulated
- Manufacturers: 3M
- MFR Part #: 7000132452
- Revere Part #: 159640
- UPC: 054007695783
- UNSPSC: 39121432
- Replacement Part #: 7000132452
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price: Login For Price
The disconnects are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
3M™, 7000132452, Disconnect Terminal, Insulated, 12 to 10 AWG Conductor, 1/4 in Tab, 0.128 in ID x 0.25 in L Interlocking Barrel, 600 V AC, Specifications: 0.95 in OAL, -40 to 221 deg F, ETP Copper, Yellow, 0.032 in THK Dimensions, Insulated: Insulated
| Barrel Type | : | 0.128 in ID x 0.25 in L Interlocking |
| Color | : | Yellow |
| Conductor Size | : | 12 to 10 AWG |
| Dimensions | : | 0.032 in THK |
| Insulated | : | Insulated |
| Material | : | ETP Copper |
| Specifications | : | 0.95 in OAL |
| Tab Size | : | 1/4 in |
| Temperature Rating | : | -40 to 221 deg F |
| Type | : | Insulated Standard |
| Voltage Rating | : | 600 V AC |

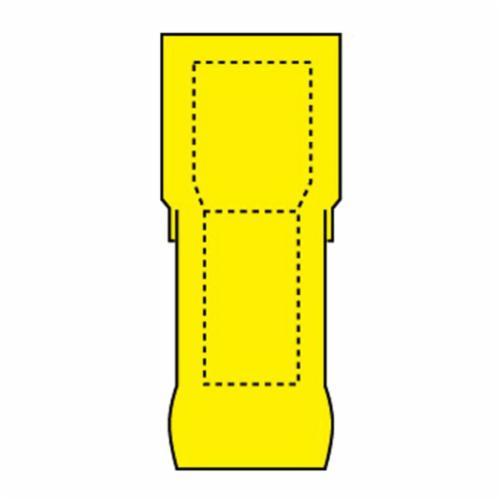

Line Drawing
Specification Sheet
