Panduit® LCAX2/0-38-X

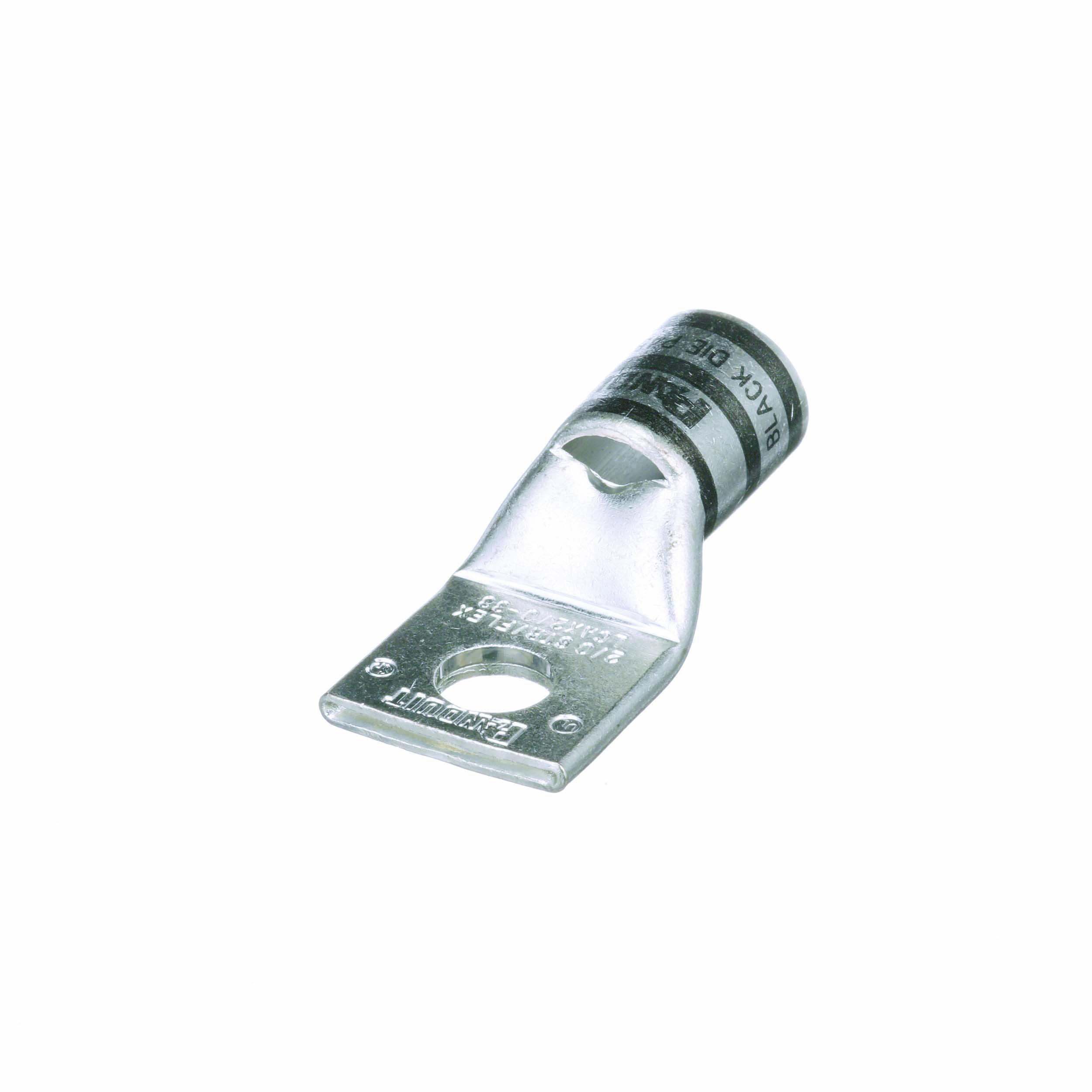

Panduit® Pan-Lug™ LCAX2/0-38-X 1-Hole Compression Connector Lug With Inspection Window, 2/0 AWG Flexible Copper Conductor, Die Code: P45, 3/8 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCAX2/0-38-X
  • Revere Part #: 172839
  • UPC: 074983435395
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole, Series: LCAX, Flexible Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 2.03 in Overall Length, Standard/Inspection Window Barrel, 0.51 in ID x 0.64 in OD x 0.83 in L Barrel, 7/8 in L Wire Strip, 90 deg C, 7/8 in Mounting Hole, Tin Plated Copper, Black

Barrel Size : 0.51 in ID x 0.64 in OD x 0.83 in L
Barrel Style : Standard with Inspection Window
Barrel Type : Standard/Inspection Window
Color : Black
Conductor Size : 2/0 AWG
Conductor Type : Flexible Copper
Die Code : P45
Material : Tin Plated Copper
Mounting Hole Size : 7/8 in
Overall Length : 2.03 in
Series : LCAX
Specifications : 7/8 in L Wire Strip
Stud Size : 3/8 in
Temperature Rating : 90 deg C
Tongue Size : 0.96 in W x 0.13 in THK
Tongue Style : Straight
Tongue Type : Straight
Type : 1-Hole
Voltage Rating : 35 kV
