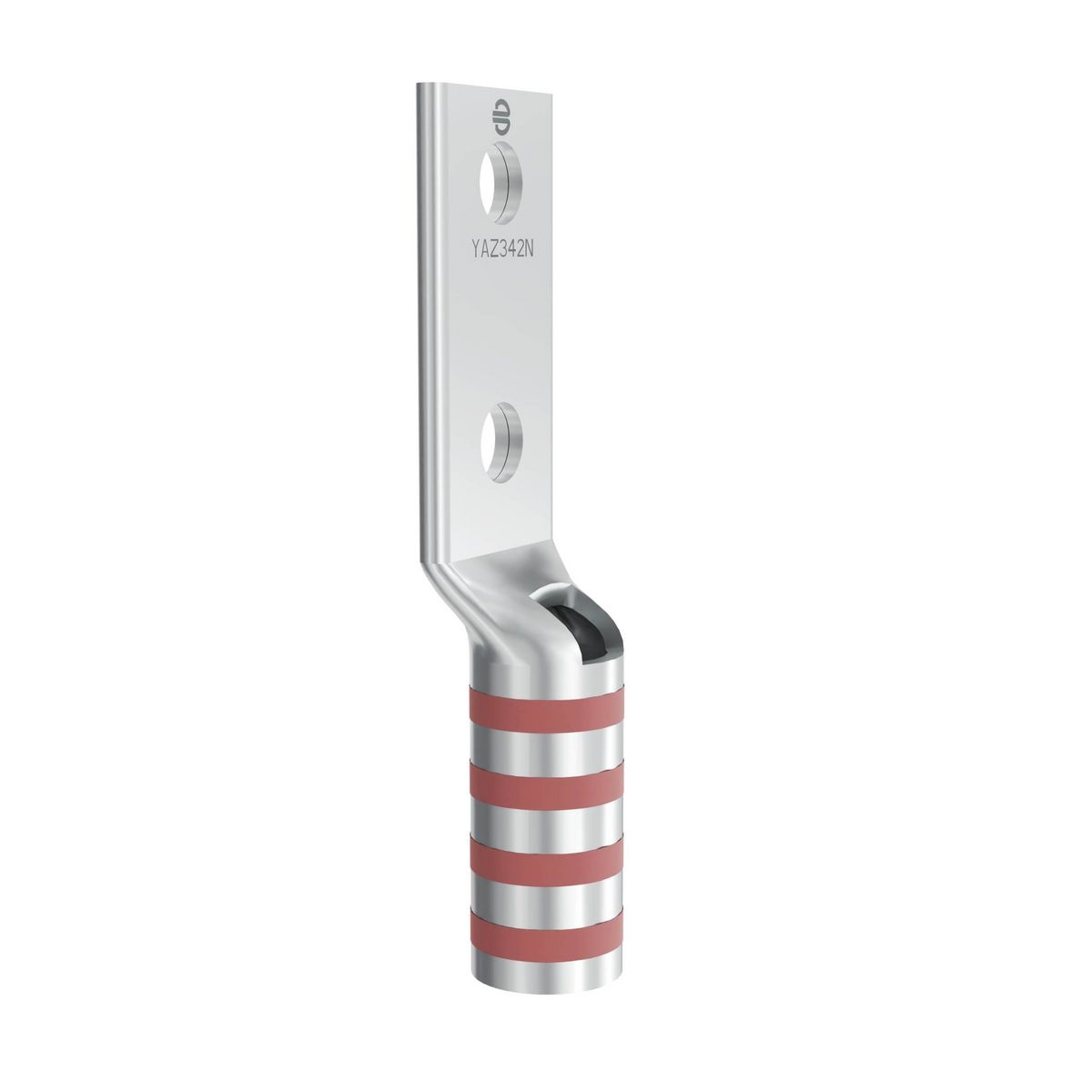

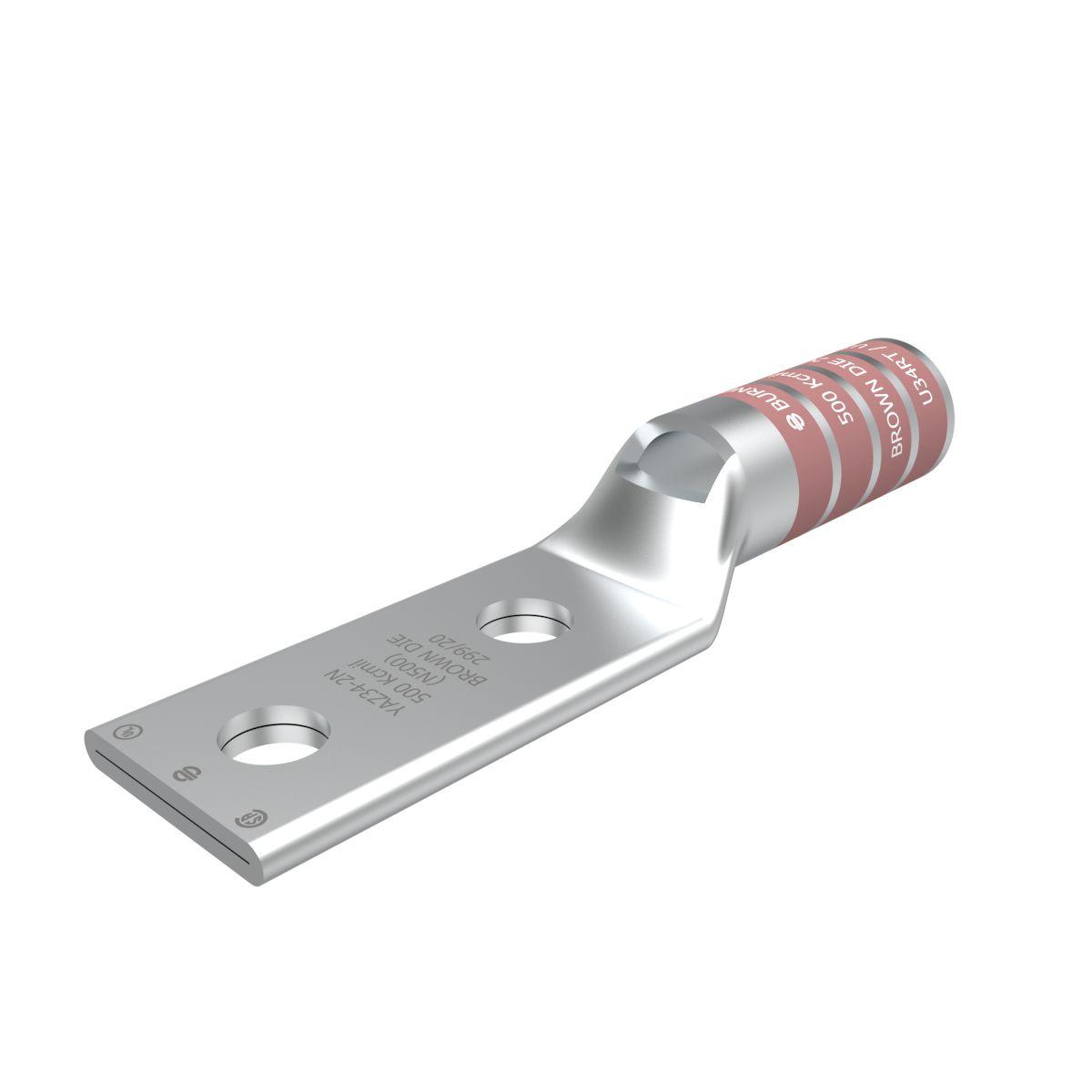

BURNDY® YAZ342N
BURNDY® HYLUG™ YAZ342N YAZ-2N 2-Hole Compression Lug With Inspection Window, 500 kcmil Copper Conductor, Die Code: 20/299, 1/2 in Stud, Tin Plated Copper
- Manufacturers: Hubbell
- MFR Part #: YAZ342N
- Revere Part #: 190431
- UPC: 781810208625
- UNSPSC: 39121405
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price: Login For Price
500 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Brown Color Code, 20 or 299 Die Index.
BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YAZ-2N, Copper Conductor, 500 kcmil Conductor, Die Code: 20/299, 600 V AC to 35 kV, 1/2 in Stud, Straight Tongue, 1.55 in W x 0.23 in THK Tongue, 6.04 in Overall Length, Long/Skived Barrel, 2-1/4 in L Barrel, 2-5/16 in L Wire Strip, 1-3/4 in Hole Spacing, 90 deg C, Tin Plated Copper, Brown
| Barrel Size | : | 2-1/4 in L |
| Barrel Style | : | Long/Skived |
| Barrel Type | : | Long/Skived |
| Color | : | Brown |
| Conductor Size | : | 500 kcmil |
| Conductor Type | : | Copper |
| Die Code | : | 20/299 |
| Material | : | Tin Plated Copper |
| Overall Length | : | 6.04 in |
| Series | : | YAZ-2N |
| Specifications | : | 2-5/16 in L Wire Strip, 1-3/4 in Hole Spacing |
| Stud Size | : | 1/2 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.55 in W x 0.23 in THK |
| Tongue Style | : | Straight |
| Tongue Type | : | Straight |
| Type | : | 2-Hole |
| Voltage Rating | : | 600 V AC to 35 kV |
