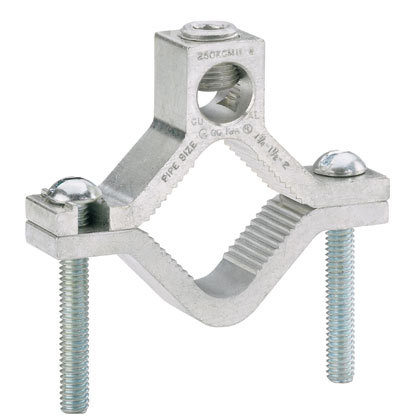

ILSCO® ClearChoice® Grounding Clamp, Type AGC Dual Rated, 1-1/4 to 2 in Pipe, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, Aluminum, Clear Plated, 3-3/4 in L x 13/16 in W
| Conductor Size | : | 6 AWG to 250 kcmil |
| Conductor Type | : | Aluminum/Copper |
| Dimensions | : | 3-3/4 in L x 13/16 in W |
| Finish | : | Clear Plated |
| Material | : | Aluminum |
| Pipe Size | : | 1-1/4 to 2 in |
| Type | : | Type AGC Dual Rated |
- Clear plated provides low contact resistance
- Versatile - effectively grounds aluminum or copper conductors to copper water pipe, galvanized pipe or steel conduit
- Range taking - 3 sizes cover a range from 1/2 to 4 in pipe with a ground wire range of 14 AWG to 250 kcmil which reduces ventory
- SGC lay-in feature provides ease of installation for long ground wire runs
- Manufactured from high strength 6061-T6 aluminum alloy
- When using the AGC-1 with rebar the bottom half of connector must be verted
- Suitable for use with either copper or aluminum conductors
- Hex socket screw
- 1-1/4 in, 1-1/2 in, 2 in pipe
- 600 VAC voltage rating
