BURNDY® C11D

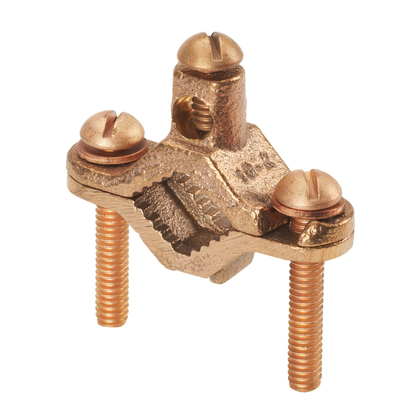

BURNDY® C11D Grounding Clamp, 1/2 to 1 in Rod, 10 to 2 AWG Conductor, Cast Bronze

  • Manufacturer: Hubbell
  • MFR Part #: C11D
  • Revere Part #: 459245
  • UPC: 781810142349
  • UNSPSC: 39121408
  • Min Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

BURNDY® Grounding Clamp, 1/2 to 1 in Pipe, 1/2 to 1 in Rod, 0.84 to 1.315 in Outside Dia, Stranded Copper Conductor, 10 to 2 AWG Conductor, Cable Parallel to Pipe, Screw Clamp to Pipe/Screw Wire Connector Installation, Cast Bronze, Unplated, 2.25 in L x 0.63 in W x 1.81 in H

Conductor Size : 10 to 2 AWG
Conductor Type : Stranded Copper
Connection Type : Cable Parallel to Pipe
Dimensions : 2.25 in L x 0.63 in W x 1.81 in H
Finish : Unplated
Installation : Screw Clamp to Pipe/Screw Wire Connector
Material : Cast Bronze
Outside Diameter : 0.84 to 1.315 in
Pipe Size : 1/2 to 1 in
Rod Size : 1/2 to 1 in
  • No armored cable
  • No ground strap
  • 50 in-lb installation torque for pipe and wire clamp
  • 10 to 2 AWG solid/stranded (main/primary), 4 to 8 rebar size conductor size
  • Silicon bronze hardware
  • 1/2 to 1 in water pipe
  • Made of cast bronze
