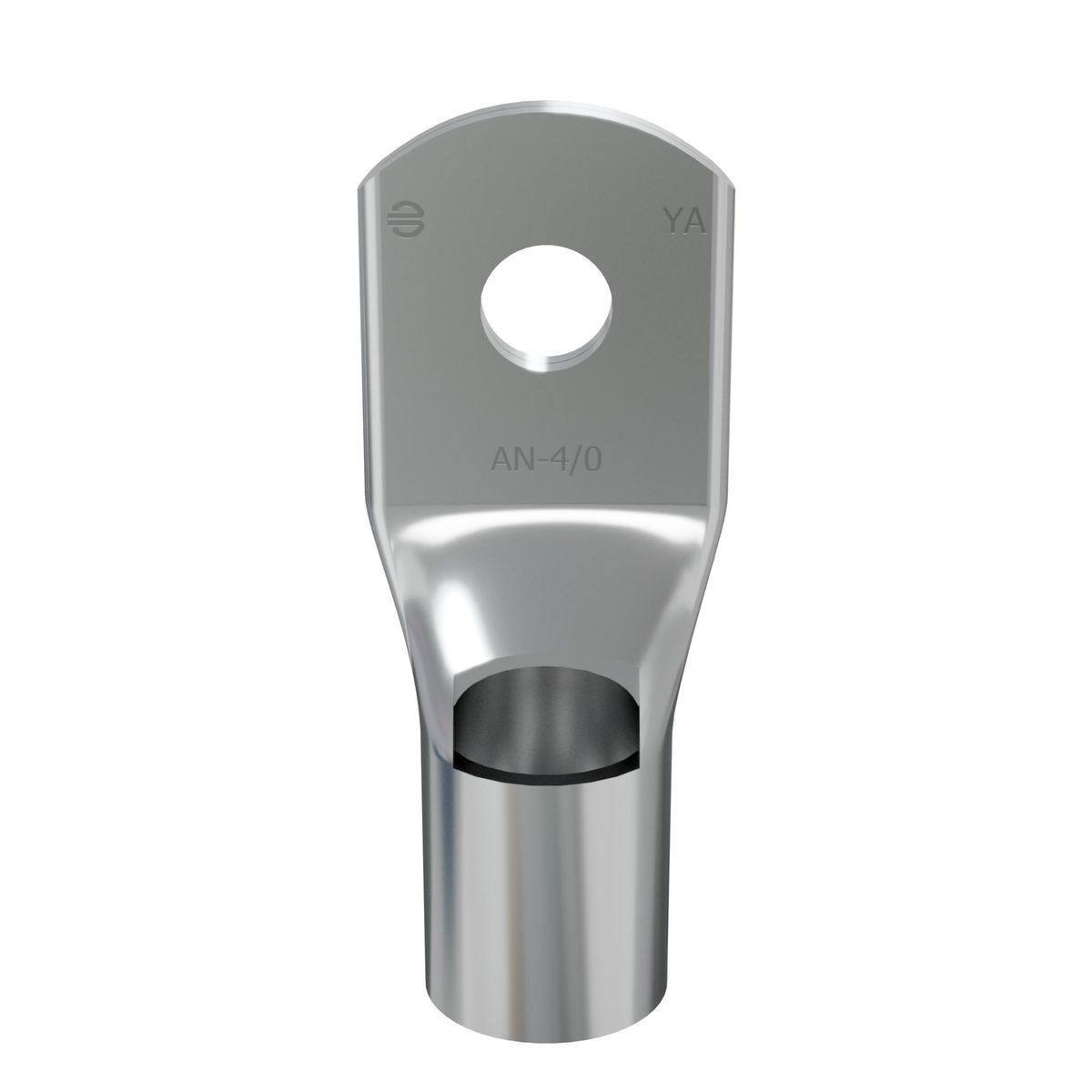

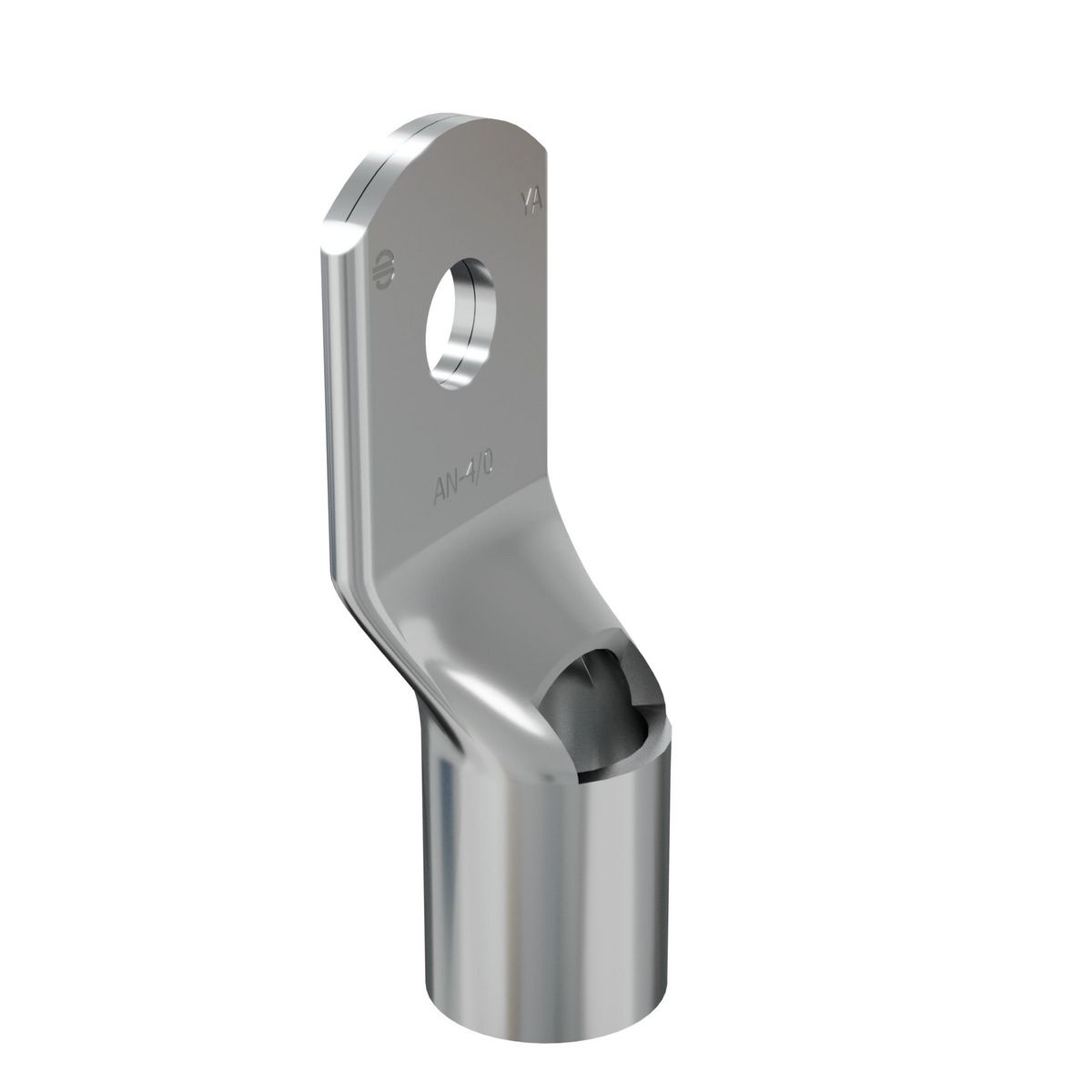

BURNDY® YAV28L
BURNDY® HYLUG™ YAV28L YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 4/0 AWG Stranded Copper Conductor, Die Code: 46, 3/8 in Stud, Electrolytic Copper
- Manufacturers: Hubbell
- MFR Part #: YAV28L
- Revere Part #: 45905
- UPC: 781810807217
- UNSPSC: 39121405
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price: Login For Price
Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN-4/0 Flex, 3/8" Stud, Short Barrel.
BURNDY® HYLUG™ Compression Lug, 1-Hole Heavy Duty Uninsulated, Series: YAV-L, Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: 46, 600 V AC, 3/8 in Stud, Ring Straight Tongue, 1.12 in W x 0.135 in THK Tongue, 2.72 in Overall Length, Short Barrel, 0.845 in L Barrel, 7/8 in L Wire Strip, Electrolytic Copper
| Barrel Size | : | 0.845 in L |
| Barrel Style | : | Short |
| Barrel Type | : | Short |
| Conductor Size | : | 4/0 AWG |
| Conductor Type | : | Stranded Copper |
| Die Code | : | 46 |
| Material | : | Electrolytic Copper |
| Overall Length | : | 2.72 in |
| Series | : | YAV-L |
| Specifications | : | 7/8 in L Wire Strip |
| Stud Size | : | 3/8 in |
| Tongue Size | : | 1.12 in W x 0.135 in THK |
| Tongue Style | : | Ring/Straight |
| Tongue Type | : | Ring Straight |
| Type | : | 1-Hole Heavy Duty Uninsulated |
| Voltage Rating | : | 600 V AC |
Specification Sheet
