BURNDY® YGHC2C2

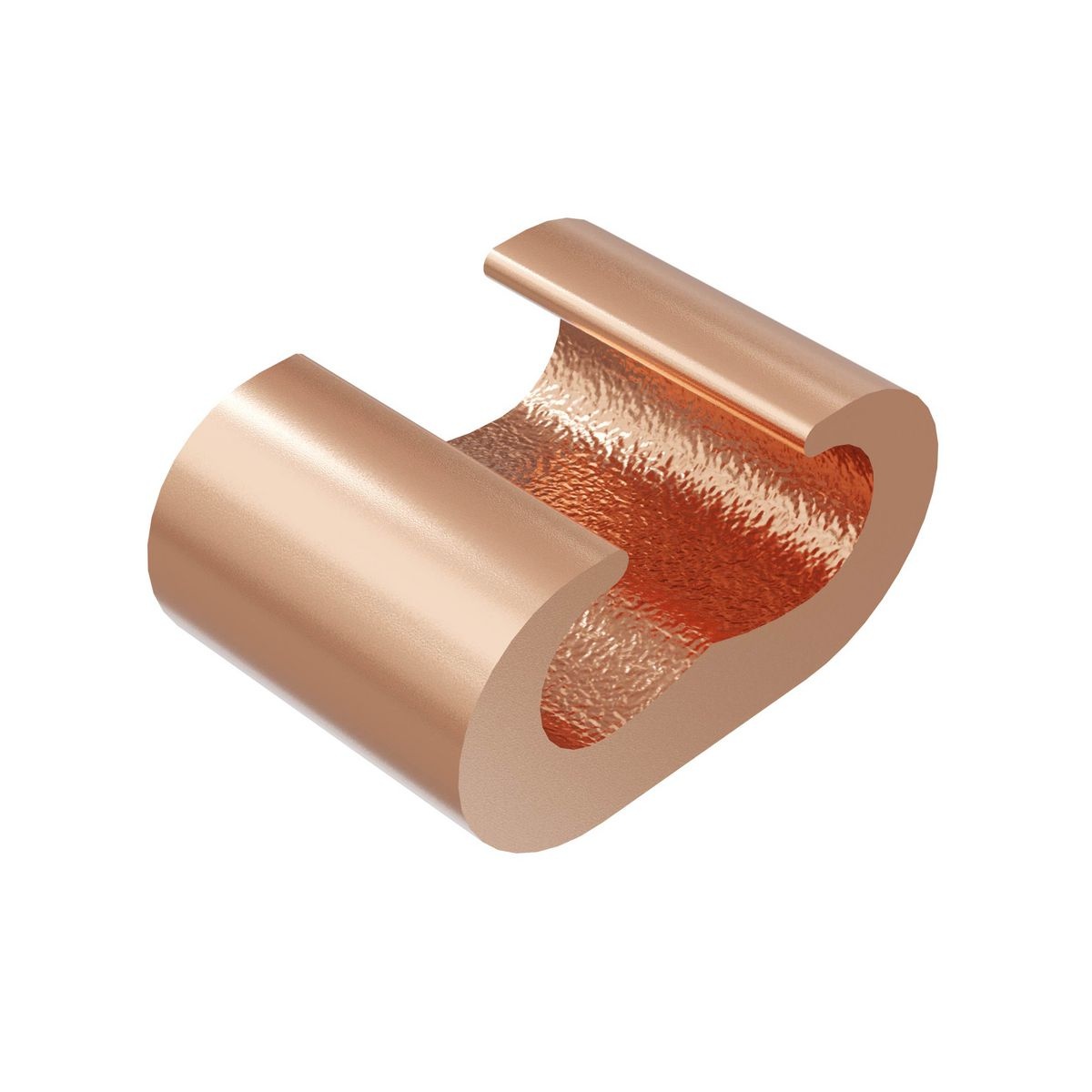

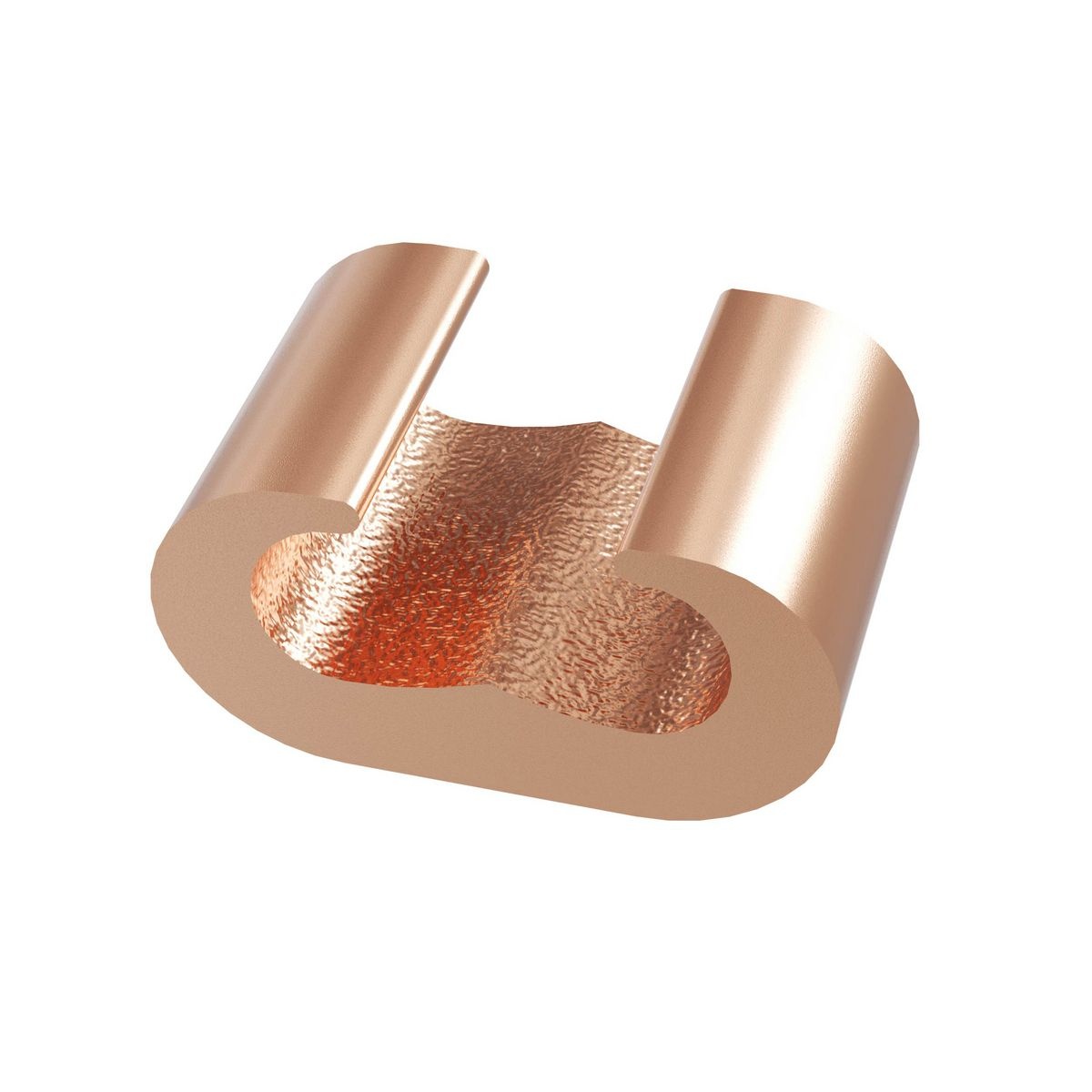

BURNDY® HYGROUND® HYTAP™ YGHC2C2 YGHC-C Type YGHC-C Compression C-Tap Connector, 6 to 2 AWG Main/Run, 6 to 2 AWG Tap

  • Manufacturers: Hubbell
  • MFR Part #: YGHC2C2
  • Revere Part #: 297500
  • UPC: 781810221013
  • UNSPSC: 39121427
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Copper Compression C Connector, 6 AWG(Sol) - 2 AWG(Str), 1/4" Rod(Run) & 6 AWG(Sol) - 2 AWG(Str) (Tap).

BURNDY® HYGROUND® HYTAP™ YGHC2C2, Compression C-Tap Connector, Type YGHC-C, Series: YGHC-C, 6 to 2 AWG Main/Run, 6 to 2 AWG Tap, Commercial Stranded/Metric Copper Conductor, Specifications: C Element A Die Index, 1/4 in Ground Rod, Unplated, 0.75 in L x 1.16 in H Dimensions

  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YGHC2C2_Full_Engineering_Drawing.pdf
  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YGHC2C2_Specification_Sheet.pdf
  • pdf Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YGHC2C2_User_Manual.pdf
