BURNDY® YA26

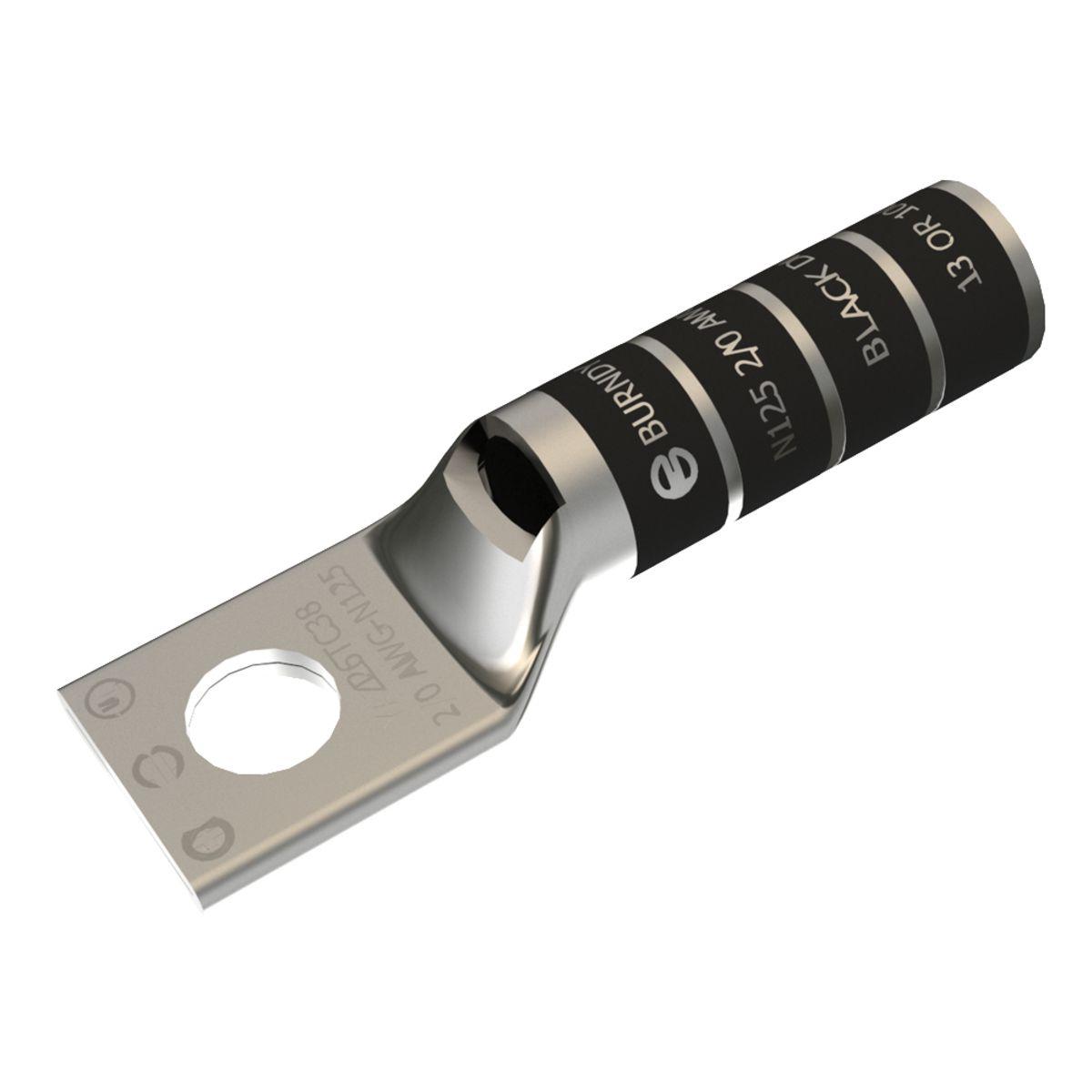

BURNDY® HYLUG™ YA26 YA Series 1-Hole Compression Lug, 2/0 AWG, Die Code: 13, 3/8 in Stud, Tin Plated Copper

  • Manufacturers: Hubbell
  • MFR Part #: YA26
  • Revere Part #: 45720
  • UPC: 781810502600
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

2/0 AWG CU, One Hole, 3/8 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90脗掳C, Up to 35kV,BLACK Color Code, 13 Die Index.

BURNDY® HYLUG™ YA26, Compression Lug, 1-Hole, Series: YA Series, 2/0 AWG Conductor, Die Code: 13, 600 to 35000 V AC, 3/8 in Stud, Straight Tongue, 0.83 in W x 0.12 in THK Tongue, 2.77 in Overall Length, Chamfered/Long Barrel, 1-1/2 in L Barrel, Specifications: 1-9/16 in L Wire Strip, 90 deg C, 0.4 in Mounting Hole, Tin Plated Copper, Black
