BURNDY® YA252N

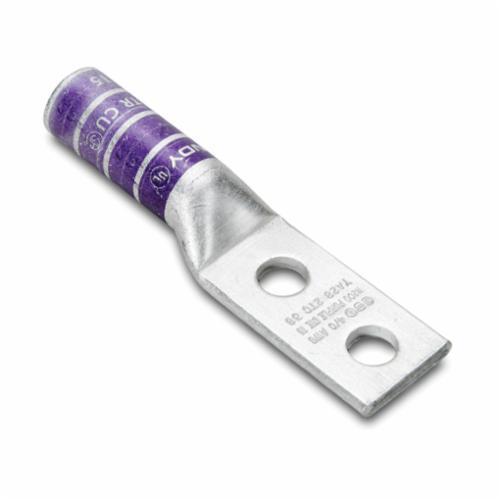

BURNDY® YA252N YA-2N 2-Hole Compression Lug, 1/0 AWG Conductor, Die Code: 12, 1/2 in Stud, Tin Plated Copper

  • Manufacturers: Hubbell
  • MFR Part #: YA252N
  • Revere Part #: 45714
  • UPC: 781810502266
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Copper Compression lug, 2 Hole w/o Inspection Window, 1/0 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long barrel, Tin Plated.

BURNDY®, YA252N, Compression Lug, 2-Hole, Series: YA-2N, 1/0 AWG Conductor, Die Code: 12, 600 V AC to 35 kV, 1/2 in Stud, Standard Tongue, 0.83 in W x 0.11 in THK Tongue, 4.81 in Overall Length, Chamfered/Long Barrel, 1.38 in L Barrel, Specifications: 0.83 in Pad, 1-3/4 in Hole Spacing, 90 deg C, 0.56 in Mounting Hole, Tin Plated Copper, Pink

  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA252N_Full_Engineering_Drawing.pdf
  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA252N_Specification_Sheet.pdf
  • pdf Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA252N_User_Manual.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA6CTC10_Installation_Manual.pdf
  • link VIDEO LINK https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6319929968112
