500 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90脗掳C, Up to 35kV, Brown Color Code, 20 or 299 Die Index.

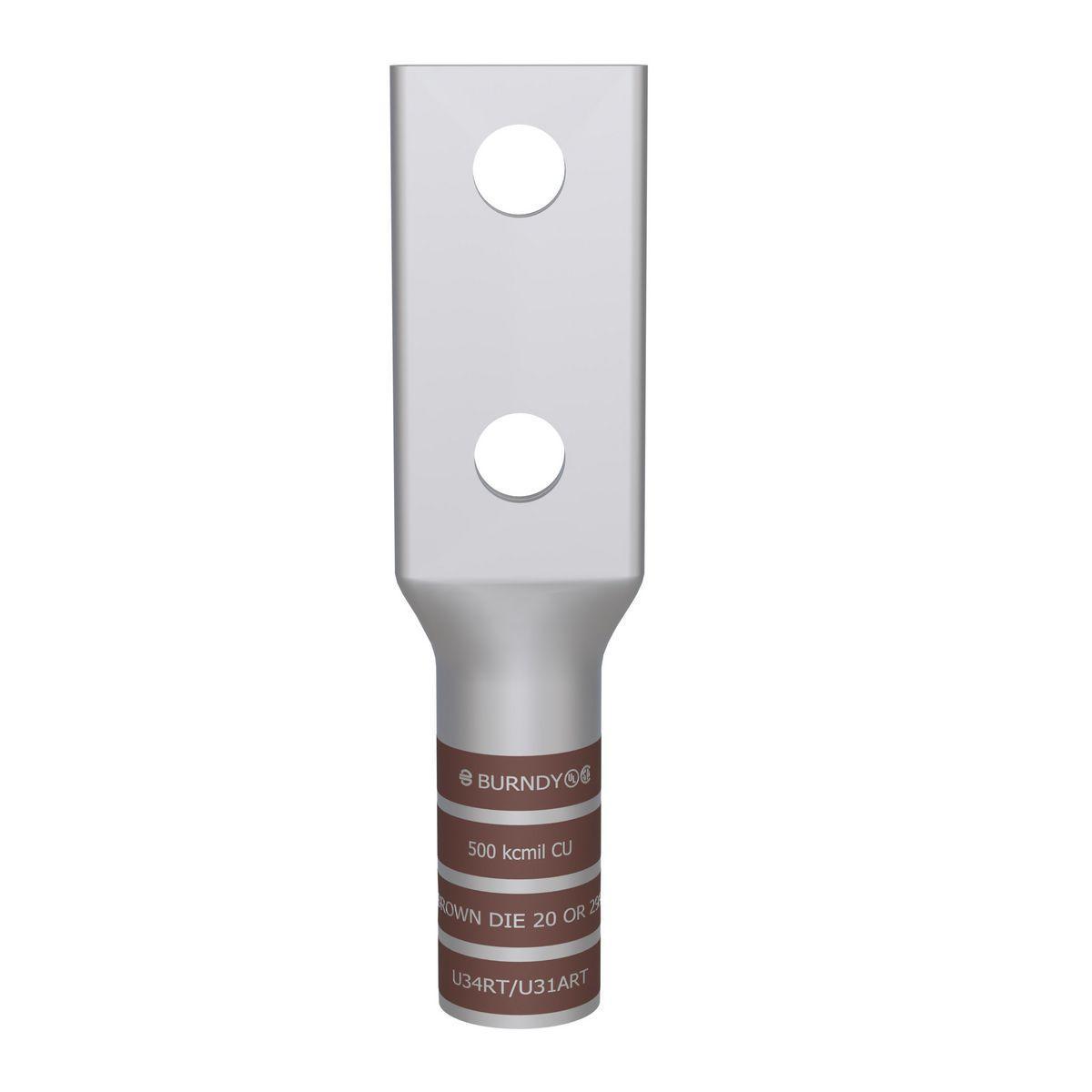

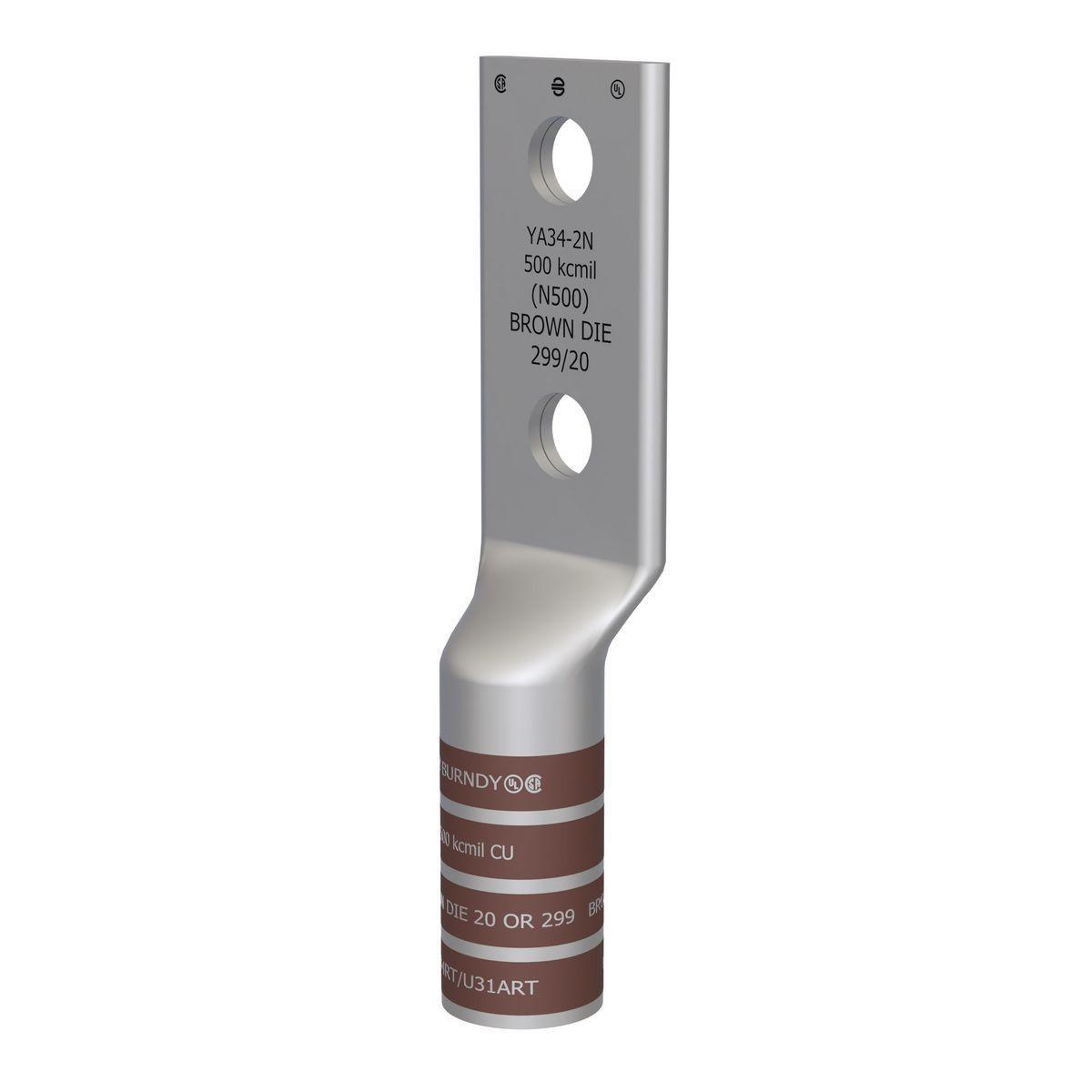

BURNDY® HYLUG™ YA342N, Compression Lug, 2-Hole, Series: YA-N, 500 kcmil Conductor, Die Code: 20, 600 to 35000 V AC, 1/2 in Stud, Straight Tongue, 1.55 in W x 0.23 in THK Tongue, 6.06 in Overall Length, Chamfered/Long Barrel, 2-1/4 in L Barrel, Specifications: 2-1/2 in L Wire Strip, 90 deg C, 1-3/4 in Mounting Hole, Tin Plated Copper, Brown
| Barrel Size | : | 2-1/4 in L |
| Barrel Style | : | Long/Chamfered |
| Barrel Type | : | Chamfered/Long |
| Color | : | Brown |
| Conductor Size | : | 500 kcmil |
| Conductor Type | : | Stranded Copper |
| Die Code | : | 20 |
| Material | : | Tin Plated Copper |
| Mounting Hole Size | : | 1-3/4 in |
| Overall Length | : | 6.06 in |
| Series | : | YA-N |
| Specifications | : | 2-1/2 in L Wire Strip |
| Stud Size | : | 1/2 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.55 in W x 0.23 in THK |
| Tongue Style | : | Straight |
| Tongue Type | : | Straight |
| Type | : | 2-Hole |
| Voltage Rating | : | 600 to 35000 V AC |
Full Engineering Drawing
VIDEO LINK
