250 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Yellow Color Code, 16 Die Index.

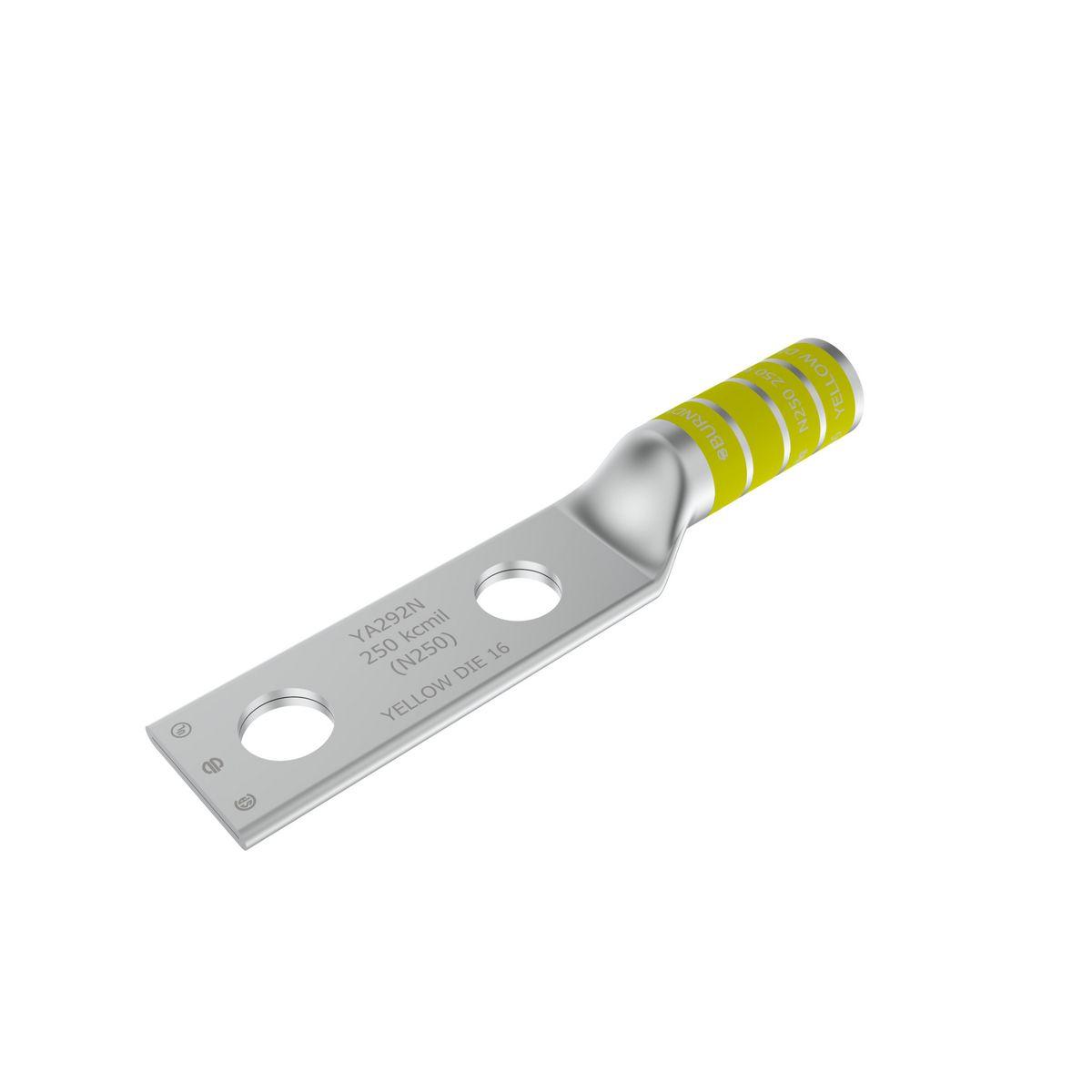

BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YA-2N, 250 kcmil Conductor, Die Code: 16, 600 V AC to 35 kV, 1/2 in Stud, Standard Tongue, 1.11 in W x 0.16 in THK Tongue, 5.21 in Overall Length, Chamfered/Long Barrel, 1.62 in L Barrel, 1.11 in Pad, 1-3/4 in Hole Spacing, 90 deg C, Tin Plated Copper, Yellow
| Barrel Size | : | 1.62 in L |
| Barrel Type | : | Chamfered/Long |
| Color | : | Yellow |
| Conductor Size | : | 250 kcmil |
| Die Code | : | 16 |
| Material | : | Tin Plated Copper |
| Overall Length | : | 5.21 in |
| Series | : | YA-2N |
| Specifications | : | 1.11 in Pad, 1-3/4 in Hole Spacing |
| Stud Size | : | 1/2 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.11 in W x 0.16 in THK |
| Tongue Type | : | Standard |
| Type | : | 2-Hole |
| Voltage Rating | : | 600 V AC to 35 kV |
