Panduit® LCC400-12W-6

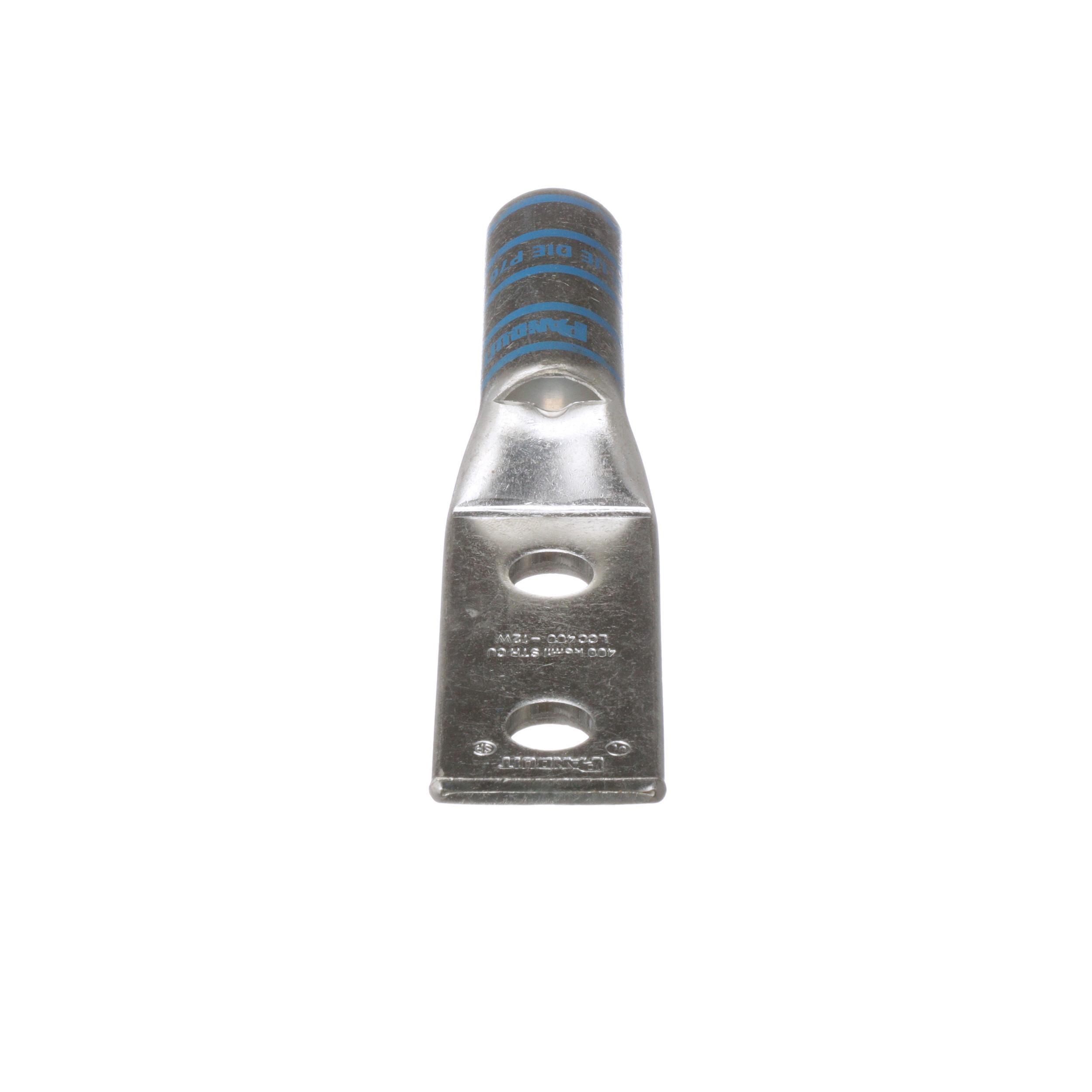

Panduit® Pan-Lug™ LCC400-12W-6 LCC-W 2-Hole Compression Lug Connector With Inspection Window, 400 kcmil Stranded Copper Conductor, Die Code: P76, 1/2 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCC400-12W-6
  • Revere Part #: 272644
  • UPC: 074983798476
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Lug Connector, 2-Hole, Series: LCC-W, Stranded Copper Conductor, 400 kcmil Conductor, Die Code: P76, 35 kV, 1/2 in Stud, Straight Tongue, 1.28 in W x 0.17 in THK Tongue, 5.84 in Overall Length, Long/Inspection Window Barrel, 0.76 in ID x 0.95 in OD x 2.3 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 2-3/8 in L Wire Strip, Tin Plated, 90 deg C, 2-3/8 in Mounting Hole, Tin Plated Copper, Blue

Barrel Size : 0.76 in ID x 0.95 in OD x 2.3 in L
Barrel Style : Long with Inspection Window
Barrel Type : Long/Inspection Window
Color : Blue
Conductor Size : 400 kcmil
Conductor Type : Stranded Copper
Die Code : P76
Material : Tin Plated Copper
Mounting Hole Size : 2-3/8 in
Overall Length : 5.84 in
Series : LCC-W
Specifications : 1-3/4 in Stud Hole Spacing, 2-3/8 in L Wire Strip, Tin Plated
Stud Size : 1/2 in
Temperature Rating : 90 deg C
Tongue Size : 1.28 in W x 0.17 in THK
Tongue Style : Straight
Tongue Type : Straight
Type : 2-Hole
Voltage Rating : 35 kV
