Panduit® LCB4/0-12-X

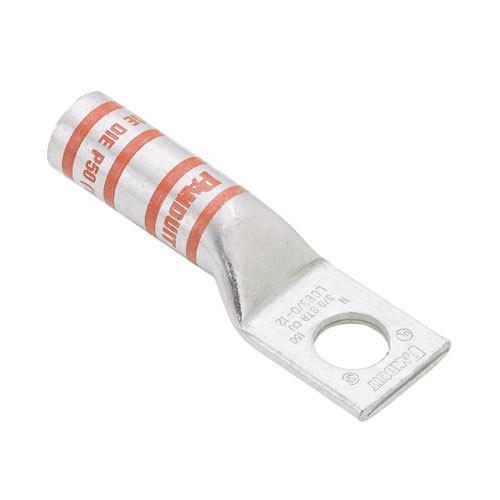

Panduit® Pan-Lug™ LCB4/0-12-X 1-Hole Compression Connector Lug, 4/0 AWG Copper/Stranded Conductor, Die Code: P54, 1/2 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCB4/0-12-X
  • Revere Part #: 207989
  • UPC: 074983901401
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Connector Lug, 1-Hole, Series: LCB, Copper/Stranded Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/2 in Stud, Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 3.22 in Overall Length, Long Barrel, 0.57 in ID x 0.71 in OD x 1.56 in L Barrel, 1-5/8 in L Wire Strip, 90 deg C, 1-5/8 in Mounting Hole, Tin Plated Copper, Purple

Barrel Size : 0.57 in ID x 0.71 in OD x 1.56 in L
Barrel Style : Long Without Inspection Window
Barrel Type : Long without Inspection Window
Color : Purple
Conductor Size : 4/0 AWG
Conductor Type : Copper/Stranded
Die Code : P54
Material : Tin Plated Copper
Mounting Hole Size : 1-5/8 in
Overall Length : 3.22 in
Series : LCB
Specifications : 1-5/8 in L Wire Strip
Stud Size : 1/2 in
Temperature Rating : 90 deg C
Tongue Size : 1.06 in W x 0.14 in THK
Tongue Style : Straight
Tongue Type : Straight
Type : 1-Hole
Voltage Rating : 35 kV
