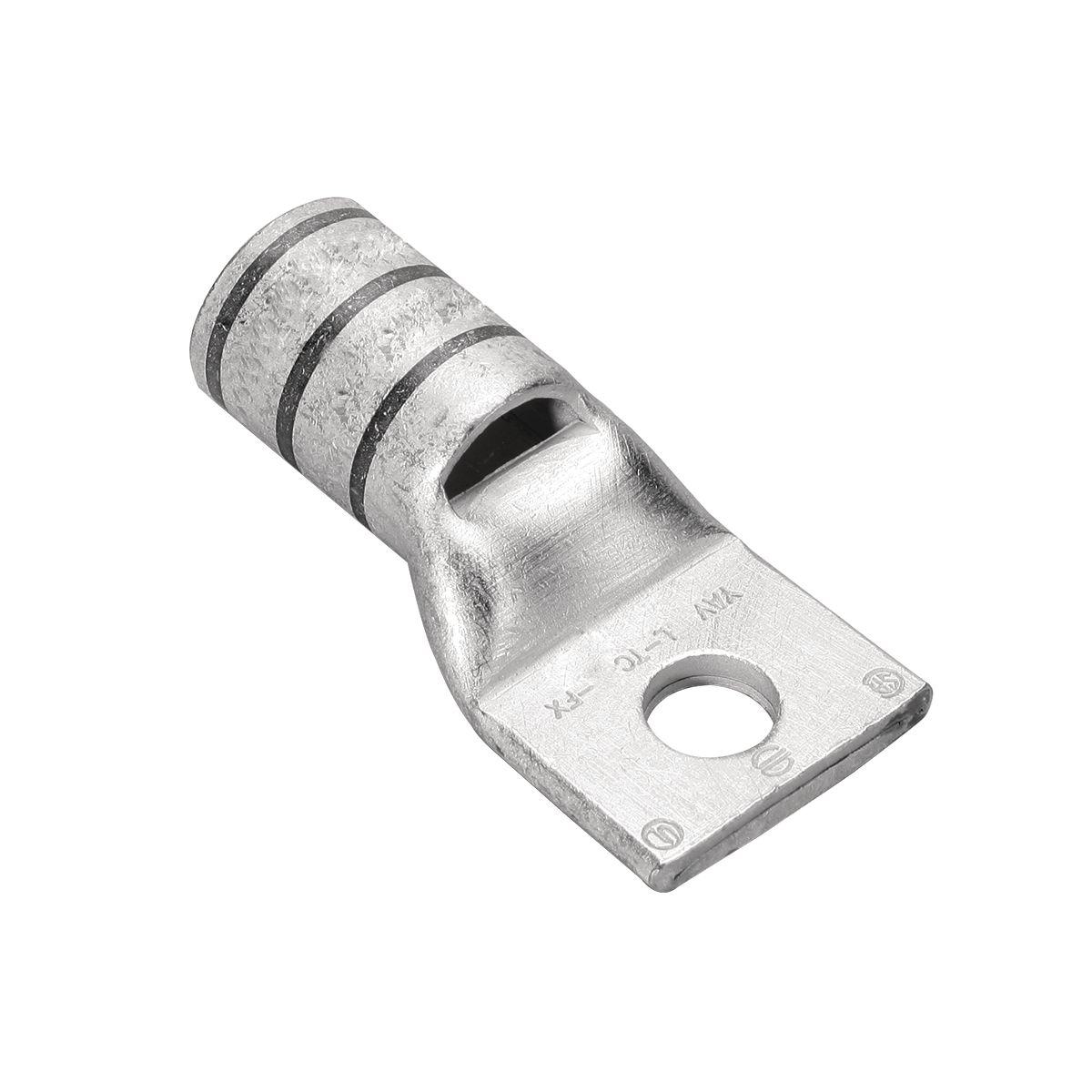

BURNDY® YAV26L3

BURNDY® HYLUG™ YAV26L3 YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Window, 2/0 AWG Stranded Copper Conductor, Die Code: 44, 1/2 in Stud, Electro-Tin Plated Copper

  • Manufacturers: Hubbell
  • MFR Part #: YAV26L3
  • Revere Part #: 266473
  • UPC: 781810025734
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 100
  • Availability: loading Branch Available

Copper Compression Lug, Heavy Duty, Ring Tongue, 1 Hole w/ Inspection Window, AN- 2/0 Flex, 1/2" Stud, Short Barrel, Tin Plated.

BURNDY® HYLUG™ Compression Lug, 1-Hole Heavy Duty Uninsulated, Series: YAV-L, Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: 44, 600 V AC, 1/2 in Stud, Ring Straight Tongue, 0.93 in OD Tongue, 2.32 in Overall Length, Short Barrel, 0.782 in L Barrel, 13/16 in L Wire Strip, Electro-Tin Plated Copper

  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YAV26L3_Specification_Sheet.pdf
  • pdf Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YAV26L3_User_Manual.pdf
  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YAV8CL2BOX_Full_Engineering_Drawing.pdf
