Panduit® LCCX4/0-12-X

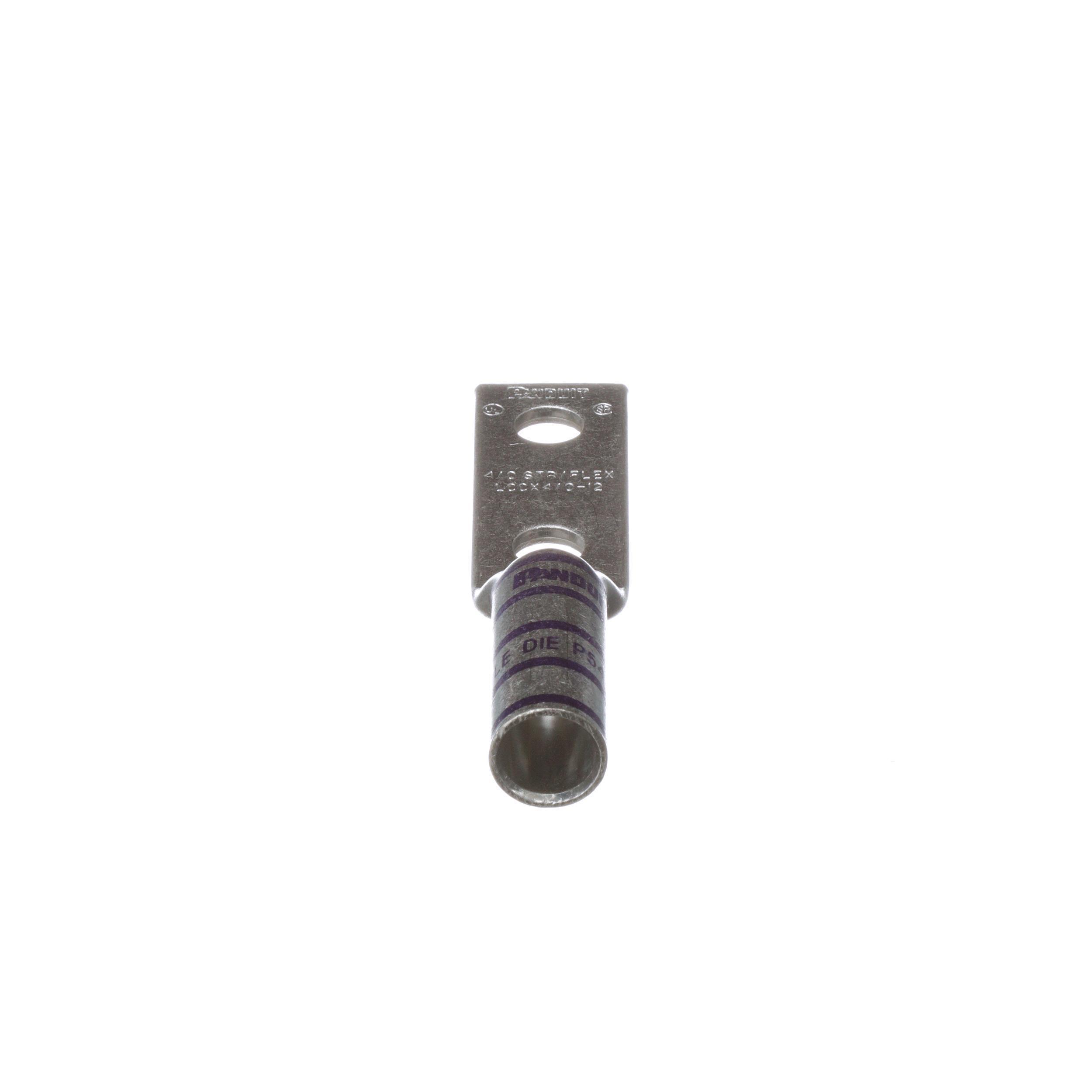

Panduit® Pan-Lug™ LCCX4/0-12-X 2-Hole Compression Connector Lug With Inspection Window, 4/0 AWG Flexible Copper Conductor, Die Code: P54, 1/2 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCCX4/0-12-X
  • Revere Part #: 221614
  • UPC: 074983437788
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Connector Lug, 2-Hole, Series: LCCX, Flexible Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/2 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 5.73 in Overall Length, Inspection Window/Long/Standard Barrel, 0.65 in ID x 0.81 in OD x 2.24 in L Barrel, 1-3/4 in Stud Hole Spacing, 2.31 in L Wire Strip, 90 deg C, 1-5/8 in Mounting Hole, Tin Plated Copper, Purple

Barrel Size : 0.65 in ID x 0.81 in OD x 2.24 in L
Barrel Style : Long/Standard with Inspection Window
Barrel Type : Inspection Window/Long/Standard
Color : Purple
Conductor Size : 4/0 AWG
Conductor Type : Flexible Copper
Die Code : P54
Material : Tin Plated Copper
Mounting Hole Size : 1-5/8 in
Overall Length : 5.73 in
Series : LCCX
Specifications : 1-3/4 in Stud Hole Spacing, 2.31 in L Wire Strip
Stud Size : 1/2 in
Temperature Rating : 90 deg C
Tongue Size : 1.19 in W x 0.16 in THK
Tongue Style : Straight
Tongue Type : Straight
Type : 2-Hole
Voltage Rating : 35 kV
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC4_0-12WF-X_Installation_Manual.pdf
  • pdf Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC4_0-12WF-X_Technical_Bulletin.pdf
  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCCX4_0-12-X_Full_Engineering_Drawing.pdf
  • video VIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
