Panduit® LCDX4/0-12-X

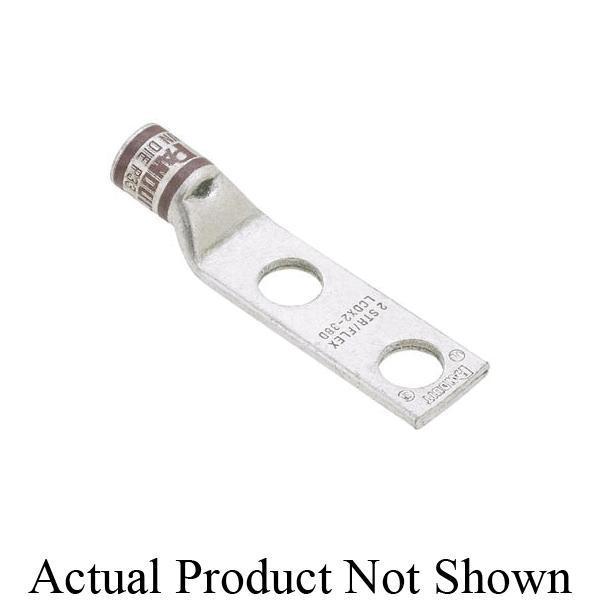

Panduit® Pan-Lug™ LCDX4/0-12-X 2-Hole Compression Connector Lug, 4/0 AWG Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P54, 1/2 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCDX4/0-12-X
  • Revere Part #: 221508
  • UPC: 074983423910
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Connector Lug, 2-Hole, Series: LCDX, Extra-Flexible/Flexible/Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/2 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 4.52 in Overall Length, Standard Barrel, 0.65 in ID x 0.65 in OD x 1.03 in L Barrel, 1-3/4 in Stud Hole Spacing, 2-15/16 in L Wire Strip, 90 deg C, 1.06 in Mounting Hole, Tin Plated Copper, Purple

Barrel Size : 0.65 in ID x 0.65 in OD x 1.03 in L
Barrel Style : Standard with Inspection Window
Barrel Type : Standard
Color : Purple
Conductor Size : 4/0 AWG
Conductor Type : Extra-Flexible/Flexible/Stranded Copper
Die Code : P54
Material : Tin Plated Copper
Mounting Hole Size : 1.06 in
Overall Length : 4.52 in
Series : LCDX
Specifications : 1-3/4 in Stud Hole Spacing, 2-15/16 in L Wire Strip
Stud Size : 1/2 in
Temperature Rating : 90 deg C
Tongue Size : 1.19 in W x 0.16 in THK
Tongue Style : Straight
Tongue Type : Straight
Type : 2-Hole
Voltage Rating : 35 kV
