Blackburn® WR159

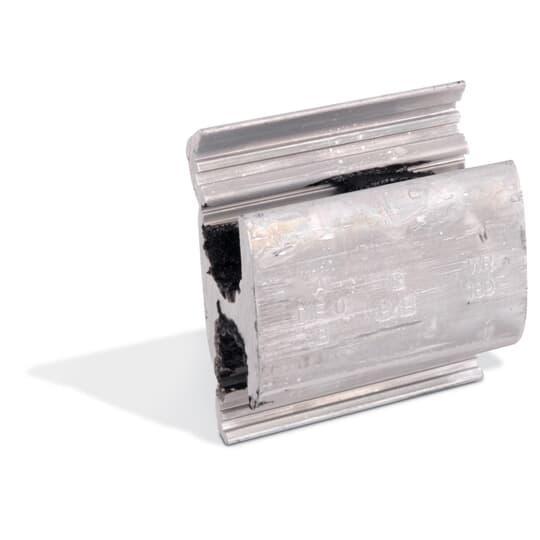

Blackburn® WR159 Type WR Wide Range Compression H-Tap Connector, H Shape, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 2 AWG Solid Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 2 AWG Solid Tap, Aluminum

  • Manufacturers: ABB
  • MFR Part #: WR159
  • Revere Part #: 400673
  • UPC: 783786100019
  • UNSPSC: 39121409
  • Replacement Part #: 7TAA267110R0003
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

Blackburn® Compression H-Tap Connector, Type WR Wide Range, H, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 2 AWG Solid Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 2 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, O Die Code, 0.162 to 0.332 in Dia Main Conductor, 0.162 to 0.332 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 1-7/16 in L

Conductor Type : ACSR/Aluminum/Copper/Solid/Stranded
Dimensions : 1-7/16 in L
Main/Run Size : 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 2 AWG Solid
Material : Aluminum
Shape : H
Specifications : O Die Code, 0.162 to 0.332 in Dia Main Conductor, 0.162 to 0.332 in Dia Tap Conductor, 2-Conductor
Tap Size : 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 2 AWG Solid
Temperature Rating : 90 deg C
Type : Type WR Wide Range
  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_WR502_Specification_Sheet.pdf
