Panduit® LCCX350-12-6

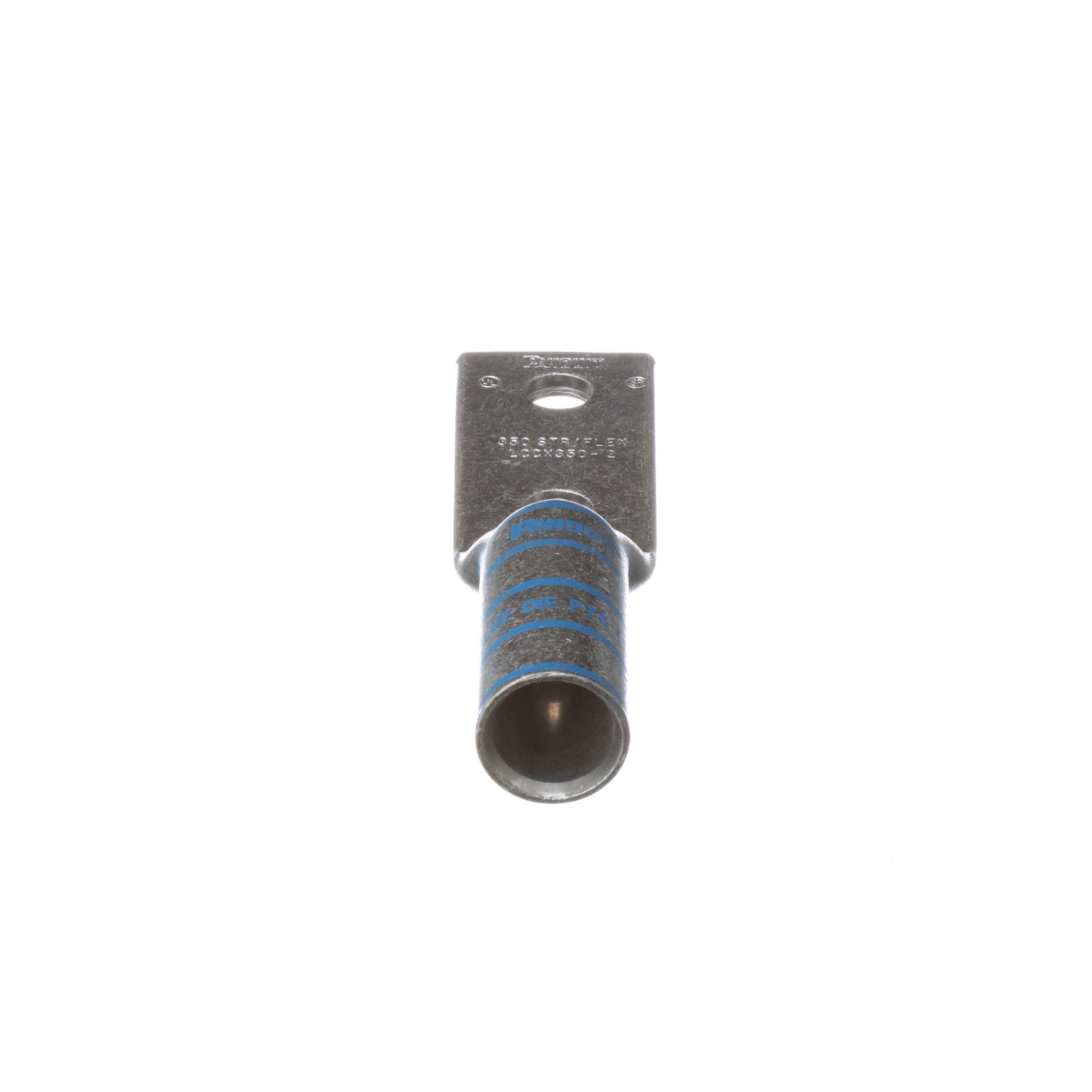

Panduit® Pan-Lug™ LCCX350-12-6 2-Hole Compression Lug Connector With Inspection Window, 350 kcmil, 373.7 kcmil Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P76, 1/2 in Stud, Tin Plated Copper

  • Manufacturers: Panduit
  • MFR Part #: LCCX350-12-6
  • Revere Part #: 279509
  • UPC: 074983426256
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Panduit® Pan-Lug™ Compression Lug Connector, 2-Hole, Series: LCCX, Extra-Flexible/Flexible/Stranded Copper Conductor, 350 kcmil, 373.7 kcmil Conductor, Die Code: P76, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 6.13 in Overall Length, Inspection Window/Long/Standard Barrel, 0.84 in ID x 1.06 in OD x 2.5 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 2-9/16 in L Wire Strip, Tin Plated, 90 deg C, 2-9/16 in Mounting Hole, Tin Plated Copper, Blue

  • pdf Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC2-14BW-Q_Technical_Bulletin.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC6-38CW-L_Installation_Manual.pdf
  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCCX350-12-6_Full_Engineering_Drawing.pdf
  • video VIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
