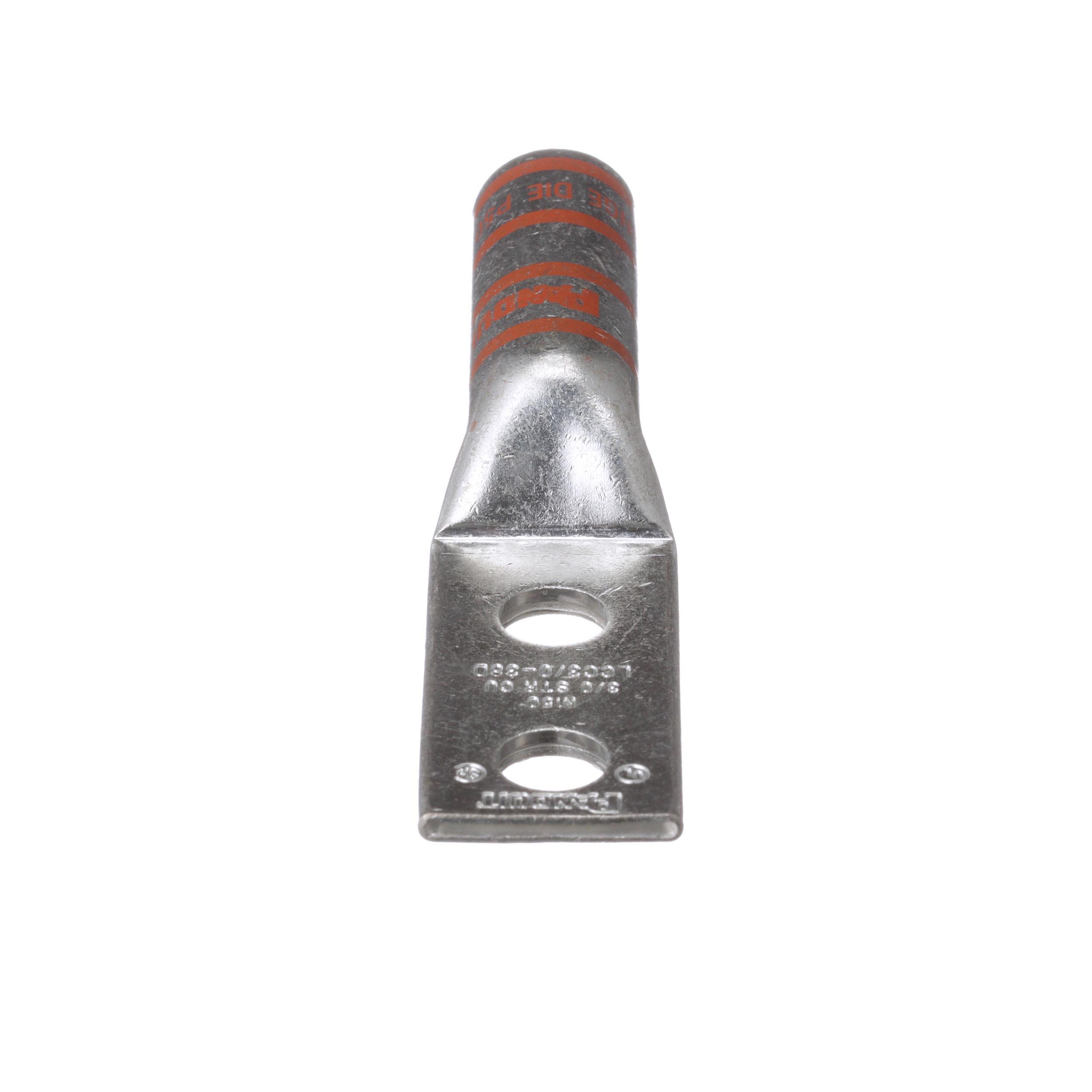

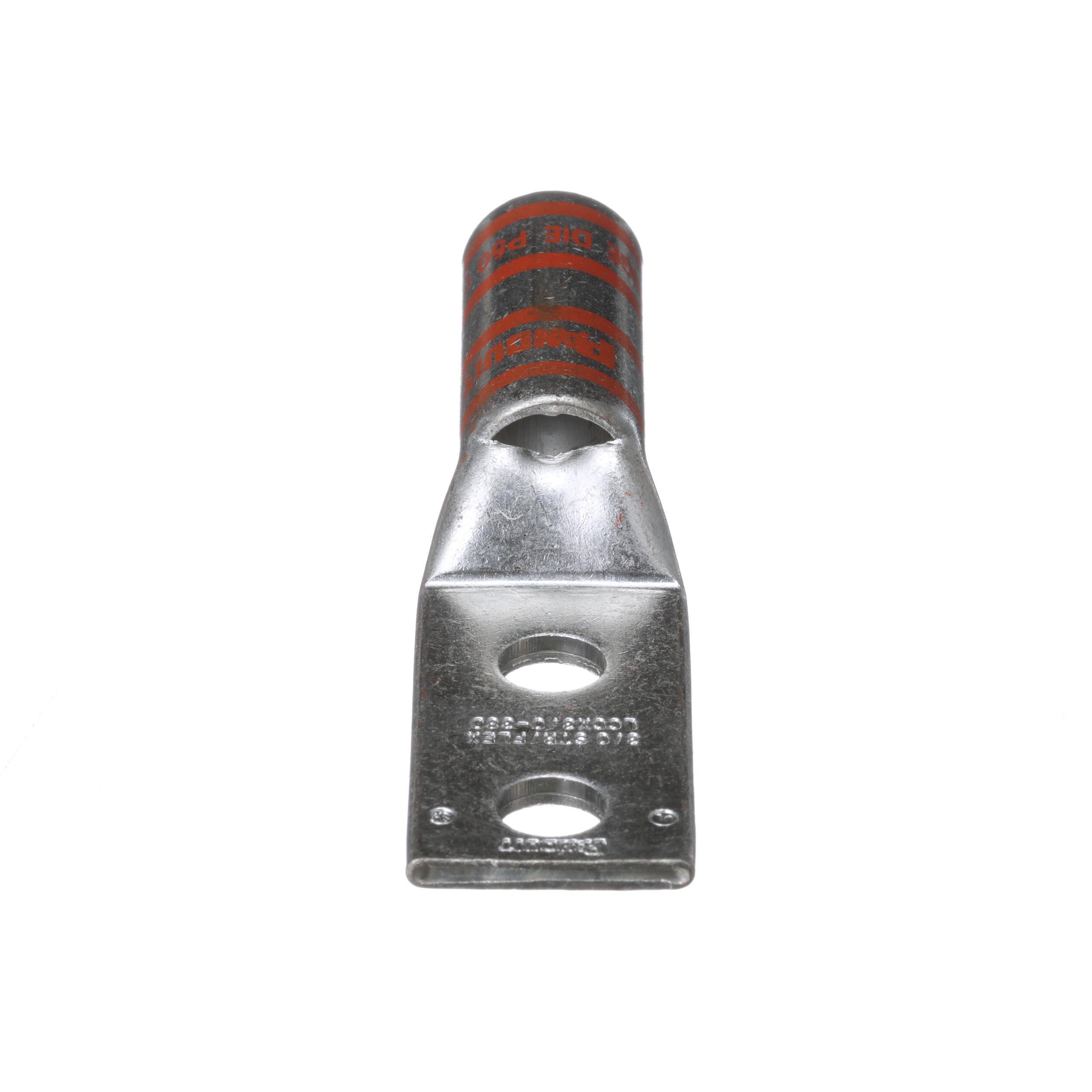

2 Hole Long Barrel Copper Compression Lug 3/0 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
NSI Compression Lug, 2-Hole, Series: LN Series, Stranded Conductor, 3/0 AWG Conductor, 600 V AC, 3/8 in Stud, 1.81 in L x 0.9 in W x 0.13 in THK Tongue, 3-1/2 in Overall Length, Long Barrel, 0.49 in ID x 0.62 in OD x 1.38 in L Barrel, 1 in Hole Spacing, 90 deg C, 3/8 in Mounting Hole, Copper, Orange
| Barrel Size | : | 0.49 in ID x 0.62 in OD x 1.38 in L |
| Barrel Type | : | Long |
| Color | : | Orange |
| Conductor Size | : | 3/0 AWG |
| Conductor Type | : | Stranded |
| Material | : | Copper |
| Mounting Hole Size | : | 3/8 in |
| Overall Length | : | 3-1/2 in |
| Series | : | LN Series |
| Specifications | : | 1 in Hole Spacing |
| Stud Size | : | 3/8 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.81 in L x 0.9 in W x 0.13 in THK |
| Type | : | 2-Hole |
| Voltage Rating | : | 600 V AC |
