BURNDY® YAZ322N

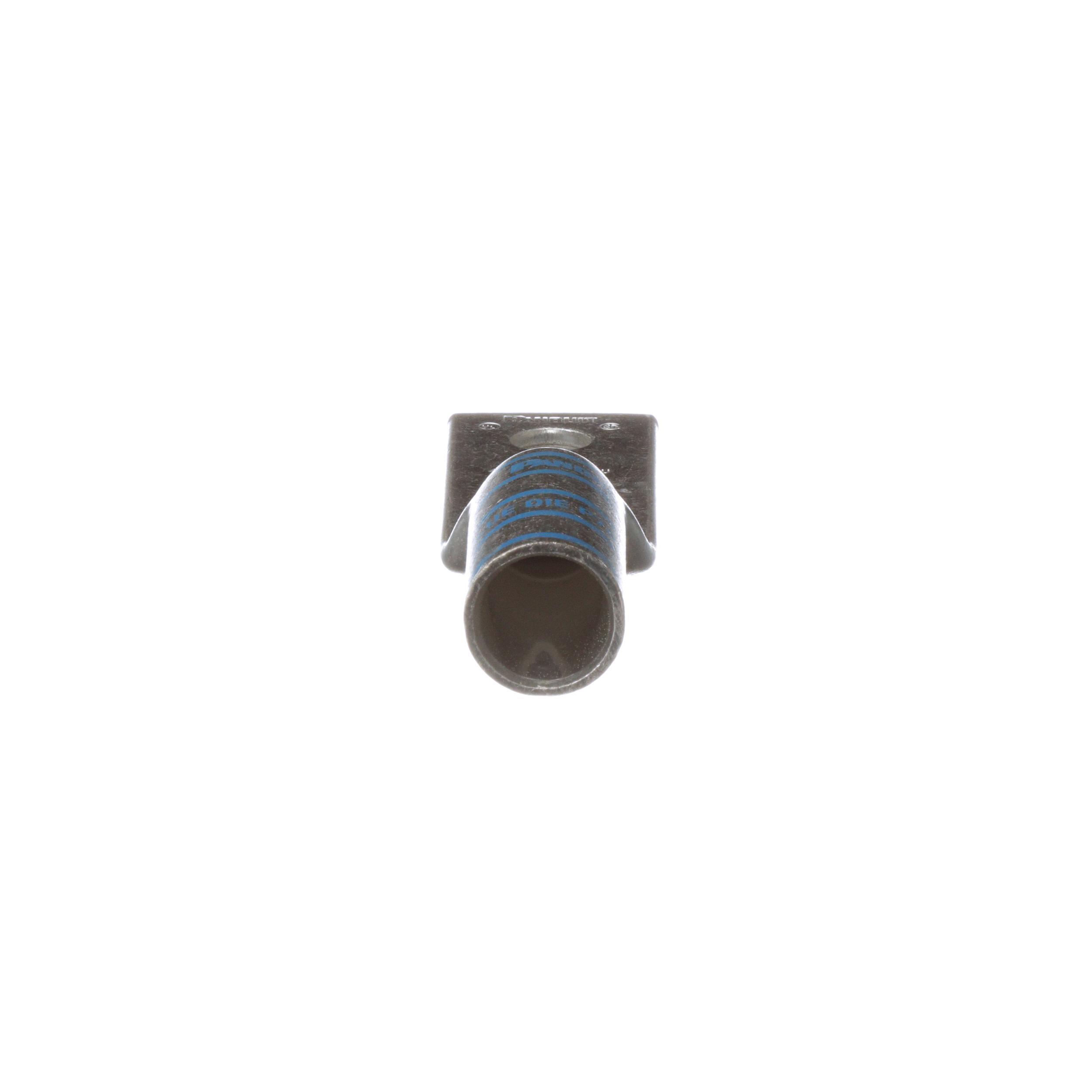

BURNDY® HYLUG™ YAZ322N YAZ-2N 2-Hole Compression Lug With Inspection Window, 400 kcmil Stranded Copper Conductor, Die Code: 19/470, 1/2 in Stud, Tin Plated Copper
- Manufacturers: Hubbell
- MFR Part #: YAZ322N
- Revere Part #: 662561
- UPC: 781810227916
- UNSPSC: 39121405
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price: Login For Price
400 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Blue Color Code, 19 Die Index.
BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YAZ-2N, Stranded Copper Conductor, 400 kcmil Conductor, Die Code: 19/470, 600 V AC to 35 kV, 1/2 in Stud, Straight Tongue, 1.4 in W x 0.19 in THK Tongue, 5.81 in Overall Length, Long/Skived Barrel, 2.12 in L Barrel, 2-3/16 in L Wire Strip, 1-3/4 in Hole Spacing, 90 deg C, Tin Plated Copper, Blue
| Barrel Size | : | 2.12 in L |
| Barrel Type | : | Long/Skived |
| Color | : | Blue |
| Conductor Size | : | 400 kcmil |
| Conductor Type | : | Stranded Copper |
| Die Code | : | 19/470 |
| Material | : | Tin Plated Copper |
| Overall Length | : | 5.81 in |
| Series | : | YAZ-2N |
| Specifications | : | 2-3/16 in L Wire Strip, 1-3/4 in Hole Spacing |
| Stud Size | : | 1/2 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.4 in W x 0.19 in THK |
| Tongue Type | : | Straight |
| Type | : | 2-Hole |
| Voltage Rating | : | 600 V AC to 35 kV |
