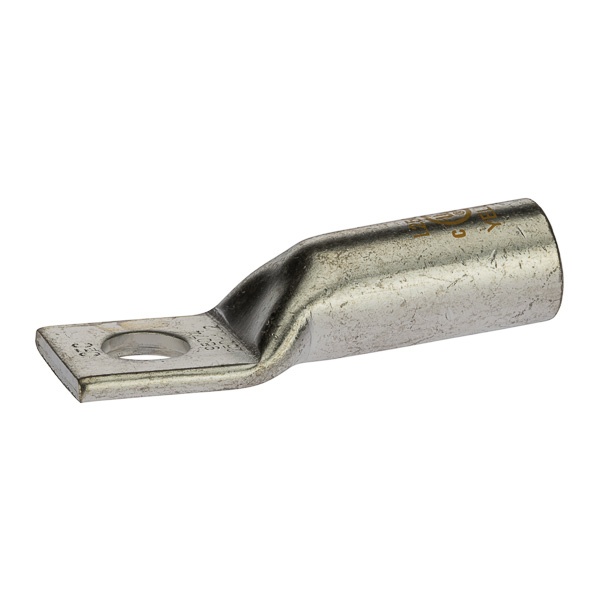

1 Hole Long Barrel Copper Compression Lug 250 MCM - 1/2" Bolt: Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded Yellow for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
NSI Compression Lug, 1-Hole, Series: L Series, Stranded Conductor, 250 kcmil Conductor, 600 V AC, 1/2 in Stud, 1.063 in L x 1.09 in W x 0.15 in THK Tongue, 3.03 in Overall Length, Long Barrel, 0.594 in ID x 0.752 in OD x 1.614 in L Barrel, 90 deg C, 1/2 in Mounting Hole, Copper, Yellow
| Barrel Size | : | 0.594 in ID x 0.752 in OD x 1.614 in L |
| Barrel Type | : | Long |
| Color | : | Yellow |
| Conductor Size | : | 250 kcmil |
| Conductor Type | : | Stranded |
| Material | : | Copper |
| Mounting Hole Size | : | 1/2 in |
| Overall Length | : | 3.03 in |
| Series | : | L Series |
| Stud Size | : | 1/2 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.063 in L x 1.09 in W x 0.15 in THK |
| Type | : | 1-Hole |
| Voltage Rating | : | 600 V AC |
