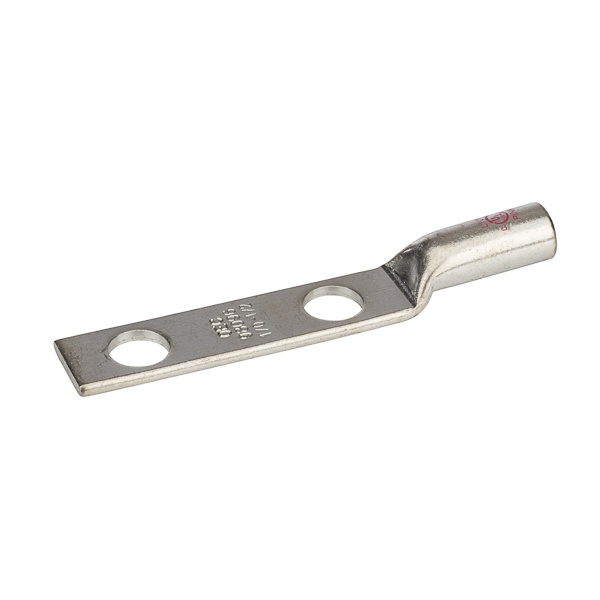

2 Hole Long Barrel Copper Compression Lug 1/0 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
NSI Compression Lug, 2-Hole, Stranded Conductor, 1/0 AWG Conductor, 600 V AC, 1/2 in Stud, 2.99 in L x 0.74 in W x 0.12 in THK Tongue, 4.63 in Overall Length, Long Barrel, 0.39 in ID x 0.52 in OD Barrel, 90 deg C, 1/2 in Mounting Hole, Copper, Pink, 0.74 in W
| Barrel Size | : | 0.39 in ID x 0.52 in OD |
| Barrel Type | : | Long |
| Color | : | Pink |
| Conductor Size | : | 1/0 AWG |
| Conductor Type | : | Stranded |
| Dimensions | : | 0.74 in W |
| Material | : | Copper |
| Mounting Hole Size | : | 1/2 in |
| Overall Length | : | 4.63 in |
| Stud Size | : | 1/2 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 2.99 in L x 0.74 in W x 0.12 in THK |
| Type | : | 2-Hole |
| Voltage Rating | : | 600 V AC |
