Color-Keyed® 54818
Color-Keyed® 54818 2-Way Long Barrel Splice Connector, 500 kcmil Copper Conductor, Die Code: 87, 4-3/4 in L, Copper
- Manufacturer: Thomas & Betts
- MFR Part #: 54818
- Revere Part #: 631909
- UPC: 786210548180
- UNSPSC: 39121449
- Replacement Part #: 7TAH007510R0016
- Min Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price: Login For Price
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Color-Keyed® Splice Connector, 2-Way Long Barrel, Copper Conductor, 500 kcmil Conductor, Die Code: 87, 600 VAC, 1.11 in OD, 4-3/4 in Length, Specifications: Tin Plated, Copper, Brown Color Code
- 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV voltage rating
- 925/24 = 373 kcmil wire size flex
Instruction/Installation Manual

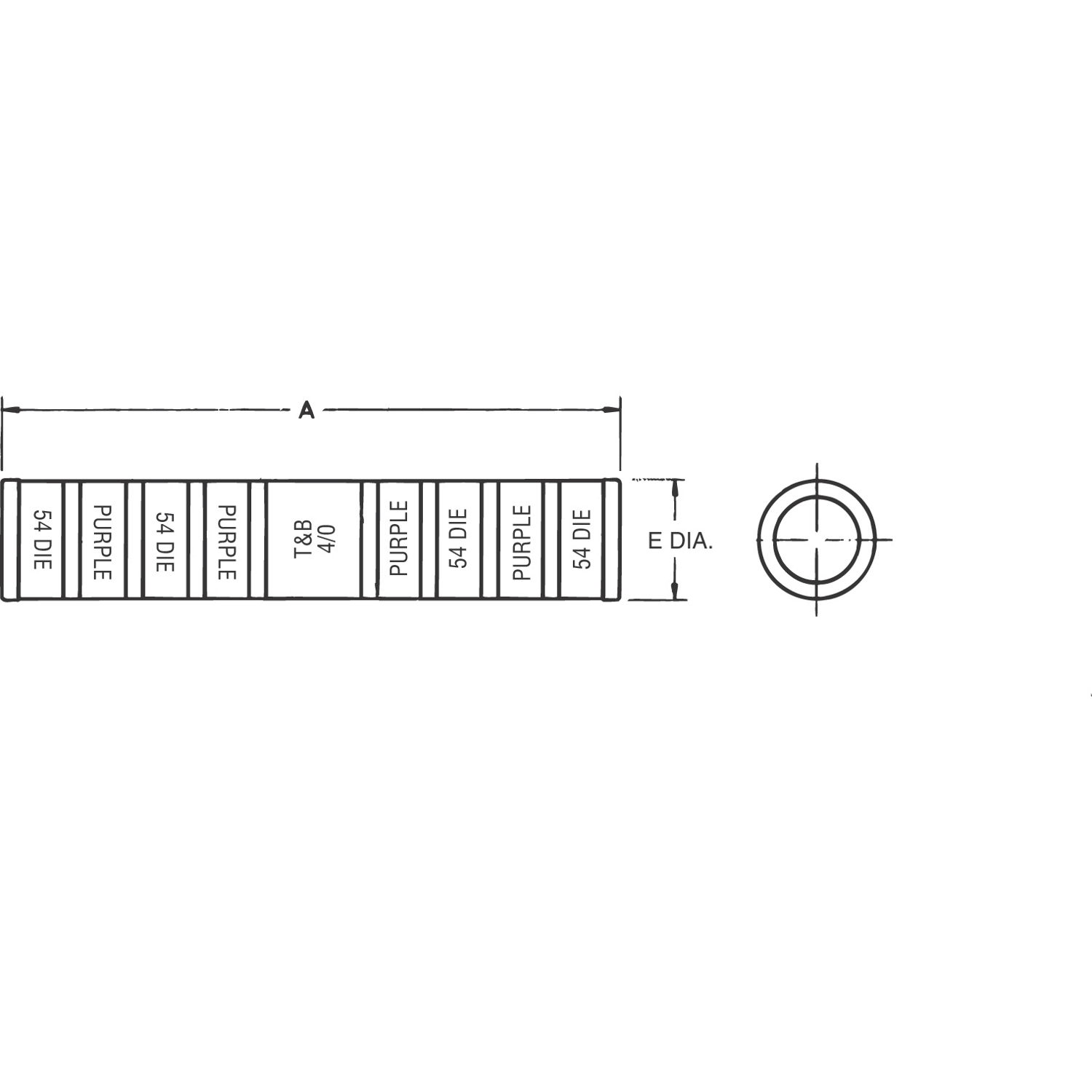

Line Drawing
