Blackburn® JJR

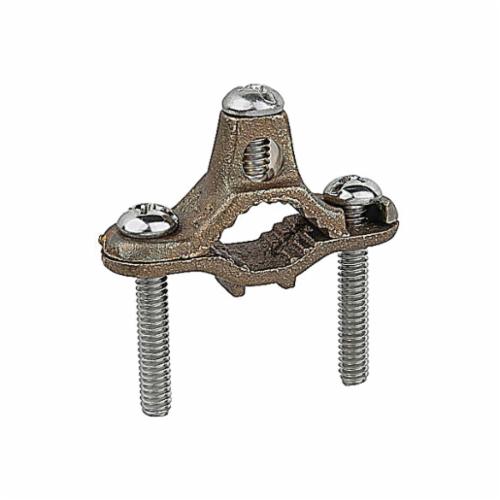

Blackburn® E-Z Ground® JJR Non-Insulated Grounding Clamp, 10 to 4 AWG Conductor, Cast Bronze

  • Manufacturer: Thomas & Betts
  • MFR Part #: JJR
  • Revere Part #: 619054
  • UPC: 783786801114
  • UNSPSC: 39121613
  • Replacement Part #: 7TAA014310R0040
  • Min Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.

Blackburn® E-Z Ground® Grounding Clamp, Non-Insulated, 1/2 to 1 in Pipe, Solid/Stranded Conductor, 10 to 4 AWG Conductor, Cast Bronze, 27/32 in W x 7/8 in D x 1-19/32 in H

  • Similar to aluminum water pipe clamp, but lighter in construction
  • pdf Catalog https://assets.unilogcorp.com/2/ITEM/DOC/Color_Keyed_FG210R2_Brochure.pdf

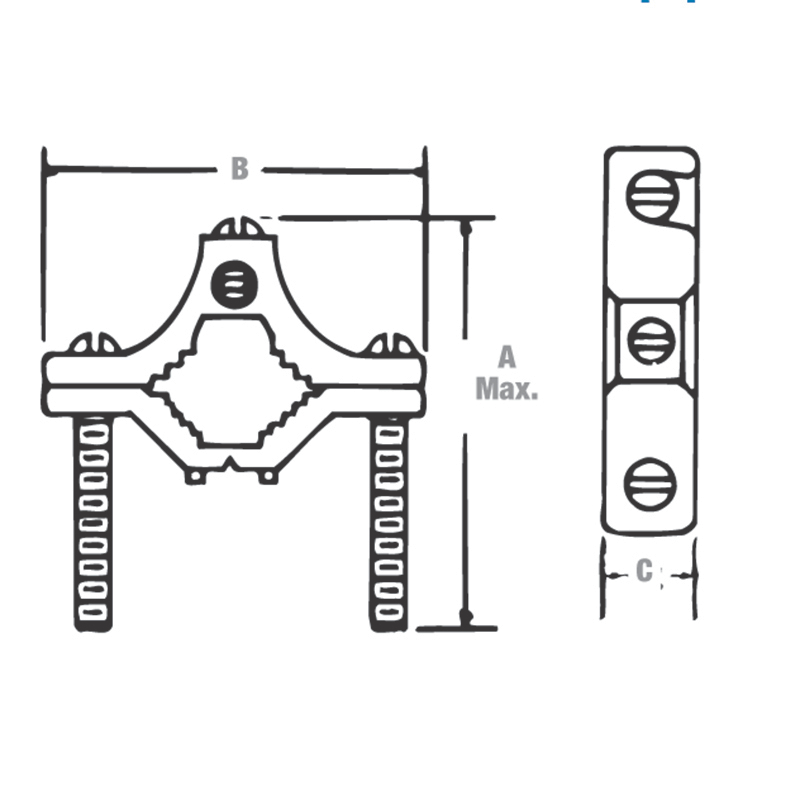

  • link Line Drawing https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_f904114883ef265faf48d8296ee8b9894d788d6b757f9ec7ec3fc174cb308db1.jpg
  • pdf Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_6587356450dc9bceb6c0a9af46478ffe80ba561a0ad49145d8ee8a976a21717b.pdf
