Nsi AL3/0-48

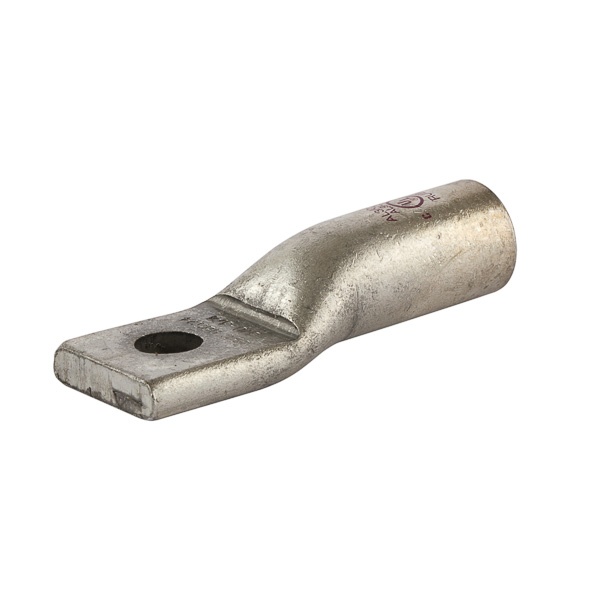

NSI AL3/0-48 AL Series 1-Hole Dual Rated Compression Lug, 3/0 AWG Stranded Aluminum/Copper Conductor, 1/2 in Stud, Aluminum

  • Manufacturers: NSi Industries
  • MFR Part #: AL3/0-48
  • Revere Part #: 593834
  • UPC: 662381030092
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

1 HoleStandard BarrelAluminum Compression Lug3/0 AWG -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

NSI Compression Lug, 1-Hole Dual Rated, Series: AL Series, Stranded Aluminum/Copper Conductor, 3/0 AWG Conductor, 600 V AC, 1/2 in Stud, 1.1181 in L x 1.02 in W x 0.2795 in THK Tongue, 3 in Overall Length, Standard Barrel, 0.48 in ID x 0.759 in OD x 1.4016 in L Barrel, 90 deg C, 1/2 in Mounting Hole, Aluminum, Ruby

Barrel Size : 0.48 in ID x 0.759 in OD x 1.4016 in L
Barrel Type : Standard
Color : Ruby
Conductor Size : 3/0 AWG
Conductor Type : Stranded Aluminum/Copper
Material : Aluminum
Mounting Hole Size : 1/2 in
Overall Length : 3 in
Series : AL Series
Stud Size : 1/2 in
Temperature Rating : 90 deg C
Tongue Size : 1.1181 in L x 1.02 in W x 0.2795 in THK
Type : 1-Hole Dual Rated
Voltage Rating : 600 V AC
