Panduit® GC-18A-X

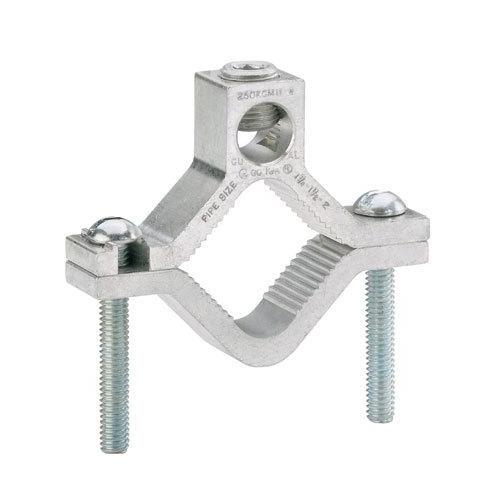

Panduit® StructuredGround™ GC-18A-X Type GC Dual Rated Grounding Clamp, 6 AWG to 250 kcmil Conductor, Aluminum Alloy/Steel Screw

  • Manufacturer: Panduit
  • MFR Part #: GC-18A-X
  • Revere Part #: 605250
  • UPC: 074983451388
  • UNSPSC: 39121408
  • Min Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit® offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround™ Mechanical Connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line of StructuredGround™ Mechanical Connectors, Panduit® delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.

Panduit® StructuredGround™ Grounding Clamp, Type GC Dual Rated, 1-1/4 to 1 in, 1-1/2 to 2 in Pipe, Copper Conductor, 6 AWG to 250 kcmil Conductor, Aluminum Alloy/Steel Screw, Plated Screw, 3.75 in L x 0.81 in W

  • Dual rated for grounding aluminum or copper code conductors to copper water pipe, galvanized pipe or steel conduit
  • Made from high strength, extruded aluminum alloy to provide long term durability
  • Tin plated to inhibit corrosion and oxidation and for low contact resistance
  • Plated steel screws provide high strength and inhibit corrosion
  • Accommodates a wide range of pipe, tube and conductor sizes minimizes inventory requirements and saves cost
