Polaris Compression is your solution for streamlining electrical installations and ensuring optimal performance inside panels, enclosures and other confined spaces. Our compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission. The POLARIS compression connectors are crafted from premium grade copper, ensuring exceptional conductivity and minimal signal loss. Additionally, a tin-plated finish provides superior corrosion resistance, even in harsh environments. The die color-coded markings simplify cable selection, while installation requires only a single standard crimp tool, saving you time and effort. These lugs are also compatible with flex rated cable, class K, H, G, I, M, and DLO. Useful in all environments up to 194 degrees Fahrenheit (90 C, AL9CU), these connectors are cULus and UL486A-486-B certified and rated for use with class B and C wires. The innovative design features of our compression connectors don’t just make connections faster—they also make connections better.

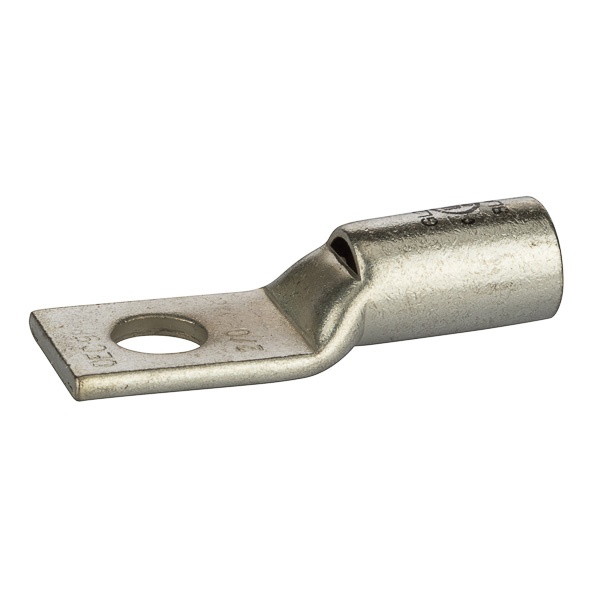

NSI Compression Lug, 1-Hole, Stranded Conductor, 2/0 AWG Conductor, 600 V AC, 3/8 in Stud, 1.06 in L x 0.81 in W x 0.12 in THK Tongue, 2.24 in Overall Length, Short Barrel, 0.44 in ID x 0.56 in OD Barrel, 90 deg C, 3/8 in Mounting Hole, Copper, Black, 0.81 in W
| Barrel Size | : | 0.44 in ID x 0.56 in OD |
| Barrel Type | : | Short |
| Color | : | Black |
| Conductor Size | : | 2/0 AWG |
| Conductor Type | : | Stranded |
| Dimensions | : | 0.81 in W |
| Material | : | Copper |
| Mounting Hole Size | : | 3/8 in |
| Overall Length | : | 2.24 in |
| Stud Size | : | 3/8 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.06 in L x 0.81 in W x 0.12 in THK |
| Type | : | 1-Hole |
| Voltage Rating | : | 600 V AC |
