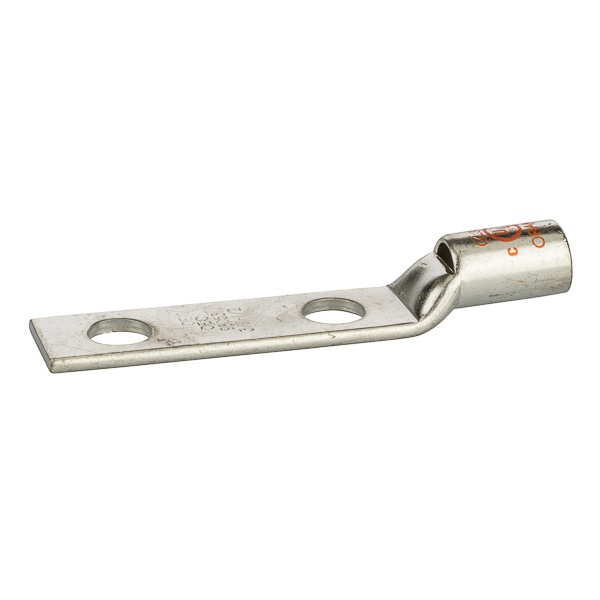

2HoleShort Barrel Copper Compression Lug w/ PeepHole3&-frasl-0 AWG-1/2" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
NSI Compression Lug, 2-Hole, Series: GL-N Series, Stranded Conductor, 3/0 AWG Conductor, 600 V AC, 1/2 in Stud, 2.99 in L x 0.9 in W x 0.13 in THK Tongue, 4.29 in Overall Length, Short Barrel, 0.49 in ID x 0.62 in OD x 0.98 in L Barrel, 1-3/4 in Hole Spacing, 90 deg C, 1/2 in Mounting Hole, Copper, Orange
| Barrel Size | : | 0.49 in ID x 0.62 in OD x 0.98 in L |
| Barrel Type | : | Short |
| Color | : | Orange |
| Conductor Size | : | 3/0 AWG |
| Conductor Type | : | Stranded |
| Material | : | Copper |
| Mounting Hole Size | : | 1/2 in |
| Overall Length | : | 4.29 in |
| Series | : | GL-N Series |
| Specifications | : | 1-3/4 in Hole Spacing |
| Stud Size | : | 1/2 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 2.99 in L x 0.9 in W x 0.13 in THK |
| Type | : | 2-Hole |
| Voltage Rating | : | 600 V AC |
Instruction/Installation Manual
