Nsi GL50058

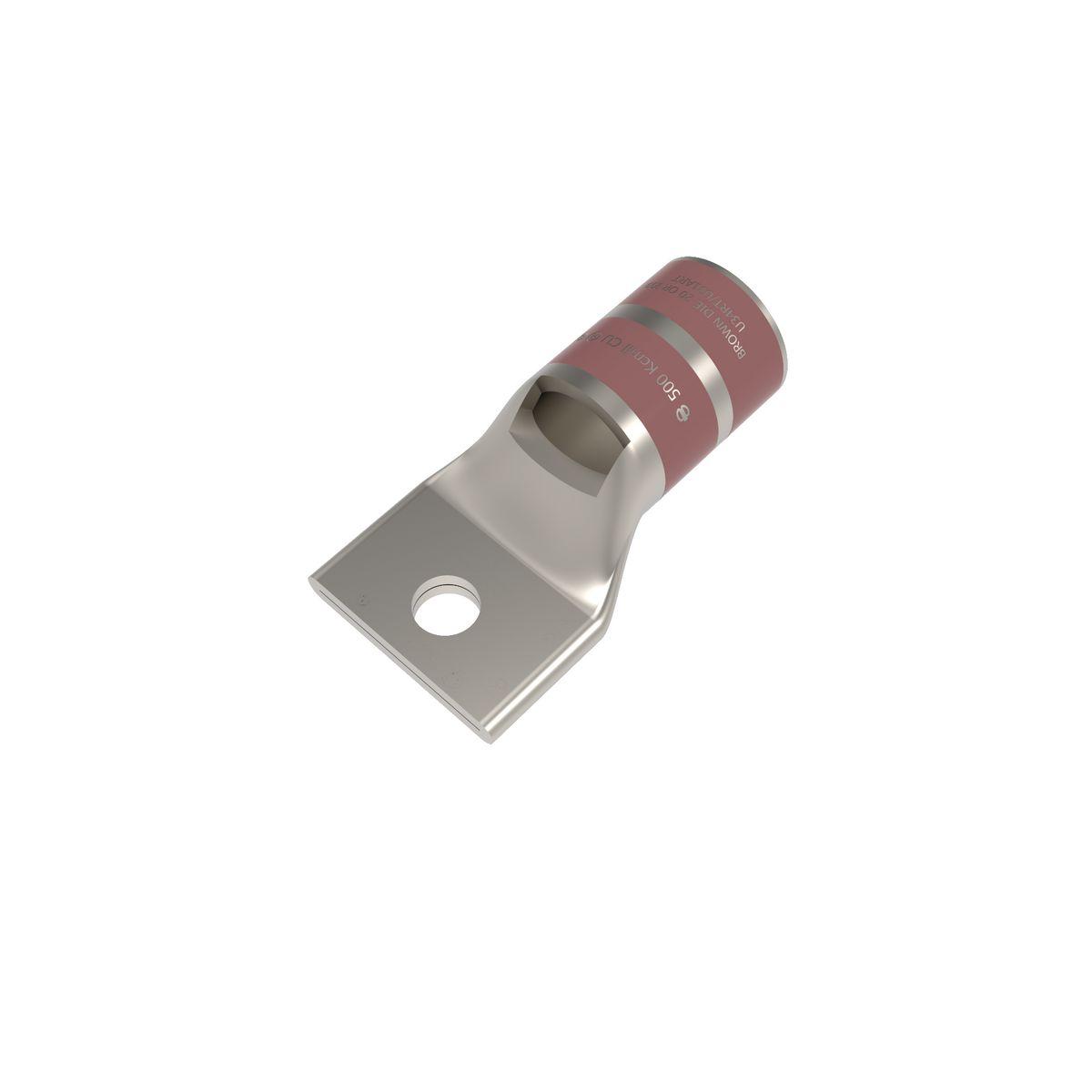

NSI GL50058 GL Series 1-Hole Compression Lug With Peep Hole, 500 kcmil Stranded Conductor, 5/8 in Stud, Copper

  • Manufacturers: NSi Industries
  • MFR Part #: GL50058
  • Revere Part #: 723310
  • UPC: 662381036353
  • UNSPSC: 39121405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading Branch Available

1 HoleShort Barrel Copper Compression Lug w/ PeepHole500MCM-5/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

NSI Compression Lug, 1-Hole, Series: GL Series, Stranded Conductor, 500 kcmil Conductor, 600 V AC, 5/8 in Stud, 1.38 in L x 1.54 in W x 0.22 in THK Tongue, 3.28 in Overall Length, Short Barrel, 0.83 in ID x 1.06 in OD x 1.38 in L Barrel, 90 deg C, 5/8 in Mounting Hole, Copper, Brown

Barrel Size : 0.83 in ID x 1.06 in OD x 1.38 in L
Barrel Type : Short
Color : Brown
Conductor Size : 500 kcmil
Conductor Type : Stranded
Material : Copper
Mounting Hole Size : 5/8 in
Overall Length : 3.28 in
Series : GL Series
Stud Size : 5/8 in
Temperature Rating : 90 deg C
Tongue Size : 1.38 in L x 1.54 in W x 0.22 in THK
Type : 1-Hole
Voltage Rating : 600 V AC
  • pdf Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NSI_GL50058_Technical_Bulletin.pdf
