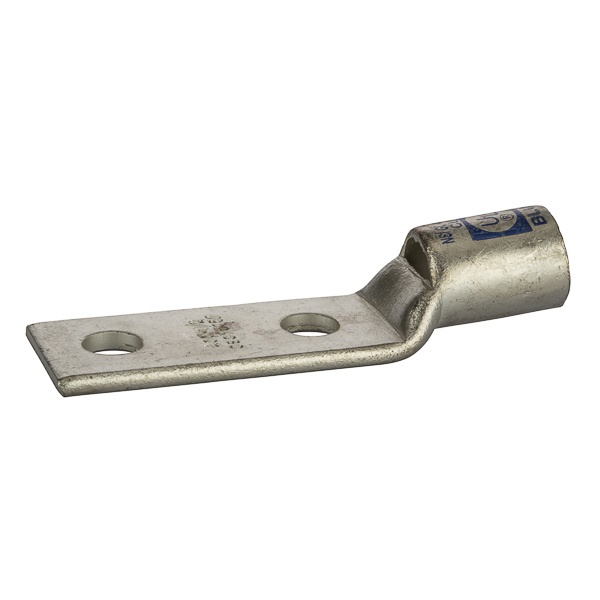

Nsi GL400N
NSI GL400N GL-N Series 2-Hole Compression Lug With Peep Hole, 400 kcmil Stranded Conductor, 1/2 in Stud, Copper
- Manufacturers: NSi Industries
- MFR Part #: GL400N
- Revere Part #: 723307
- UPC: 662381036568
- UNSPSC: 39121405
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price: Login For Price
2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 400 MCM - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
NSI Compression Lug, 2-Hole, Series: GL-N Series, Stranded Conductor, 400 kcmil Conductor, 600 V AC, 1/2 in Stud, 2.99 in L x 1.39 in W x 0.18 in THK Tongue, 4.69 in Overall Length, Short Barrel, 0.76 in ID x 0.95 in OD x 1.18 in L Barrel, 1-3/4 in Hole Spacing, 90 deg C, 1/2 in Mounting Hole, Copper, Blue
| Barrel Size | : | 0.76 in ID x 0.95 in OD x 1.18 in L |
| Barrel Type | : | Short |
| Color | : | Blue |
| Conductor Size | : | 400 kcmil |
| Conductor Type | : | Stranded |
| Material | : | Copper |
| Mounting Hole Size | : | 1/2 in |
| Overall Length | : | 4.69 in |
| Series | : | GL-N Series |
| Specifications | : | 1-3/4 in Hole Spacing |
| Stud Size | : | 1/2 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 2.99 in L x 1.39 in W x 0.18 in THK |
| Type | : | 2-Hole |
| Voltage Rating | : | 600 V AC |
Technical Bulletin
